Checking Resistance of the Oxygen Sensor's Preheating Element

Checking the Resistance of the Oxygen Sensor's Preheating Element

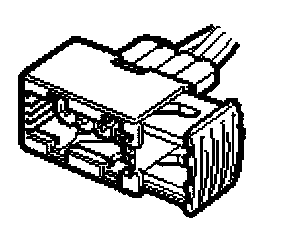

Unplug the connector
- Heated oxygen sensor 1 OBDII (592Fa)

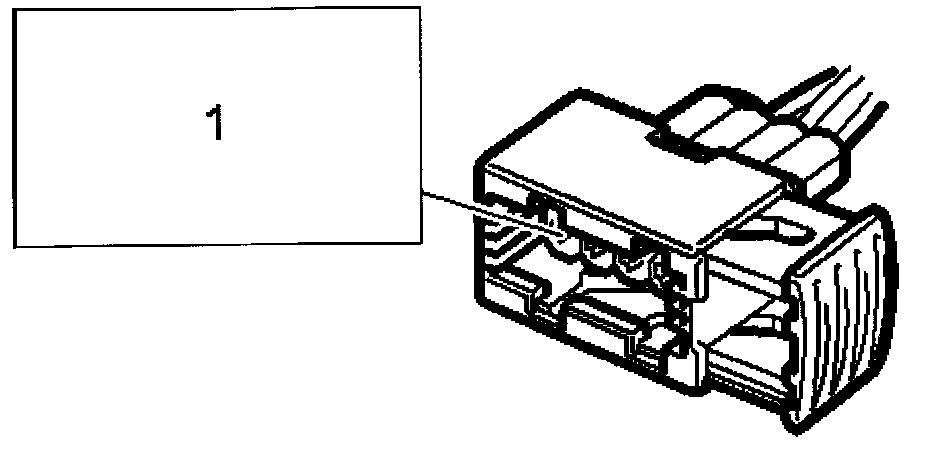

- Connect test lamp 86 11 857 to pin 1 of the female connector and a good grounding point.

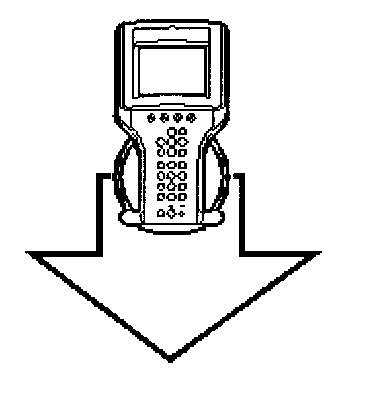

- Contact Trionic 5 OBDII

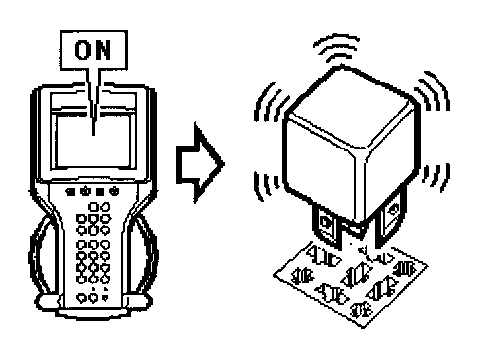

- Activate.







Main Relay
- The test lamp should flash.

Is the function correct?

NO -

YES -
