Checking the Thermostat

Checking The Thermostat

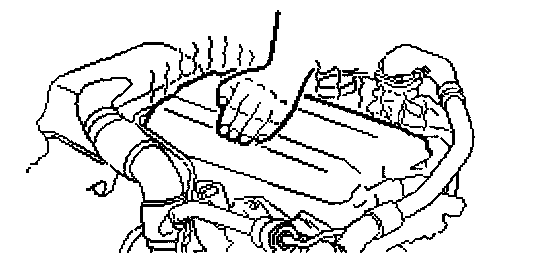

- The engine should be so cool that you can place your hand on the cylinder head without getting burnt.

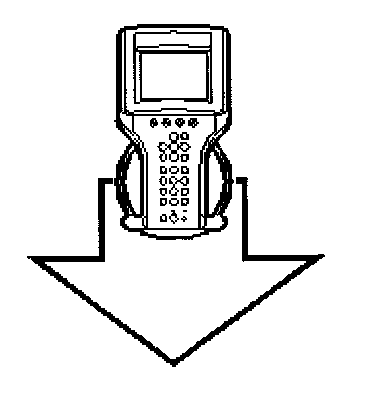

- Contact Trionic 5 OBDII.

- Test value:
Coolant Temperature

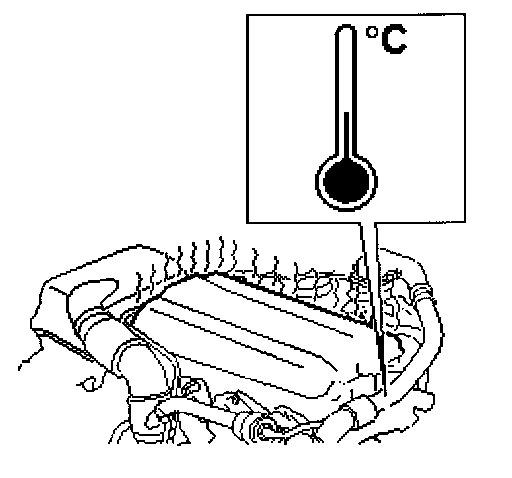

- Start the engine and warm it up at idling speed.

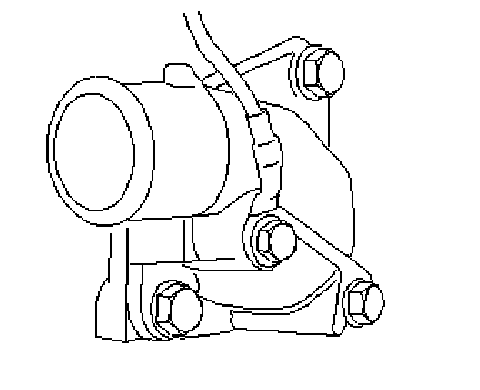

- Check by feeling the upper radiator hose close to the thermostat housing, making sure that it warms up quickly when the coolant temperature reaches 89 °C and the thermostat opens.
- After this the coolant temperature should be comparatively constant, about 89 C (192 F), for a minute or so.

Is the function correct?

NO - Continue With Checking The Thermostat

YES -







Change the thermostat.

After performing this procedure
