B2625

CD Player - Focus Error
CD Changer - Focus Error

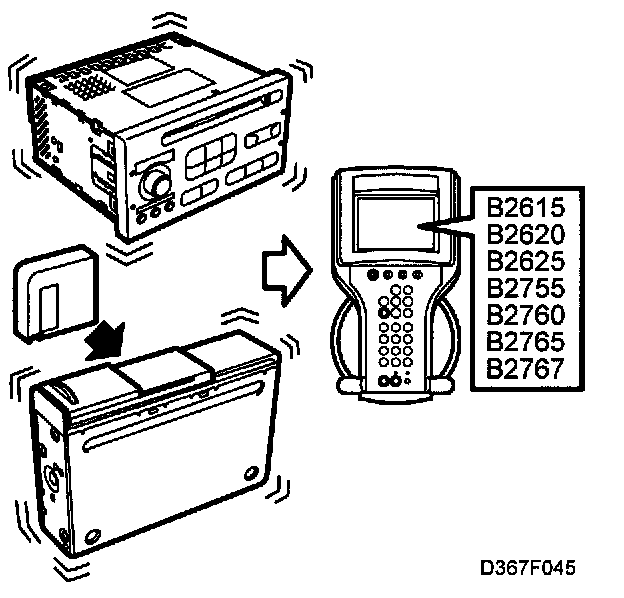

B2615, B2620, B2625, B2755, B2760, B2765, B2767:

Fault symptoms
CD ERROR 02 displayed on SID.
The CD player or CD changer not functioning and besides DTC B2755 the following DTCs are also generated:

B2615
CD Changer. Magazine Failure or Mechanical Failure.

B2620
CD Changer. Extreme Vibrations or Mechanical Failure.

B2625
CD Changer. CD Record Faulty or Internal Error 1.

B2760
CD Changer. Focus Error 2.

B2765
Main Unit/CD Changer. CD Record Faulty or Internal Failure 2.

B2767
Main Unit/CD Changer. Compact Disc Faulty or Extreme Vibrations

Conditions
This DTC is generated if a CD is fouled, defective or inserted upside down.

Diagnostic help
Insert a fault-free CD to test the function.
