B2355

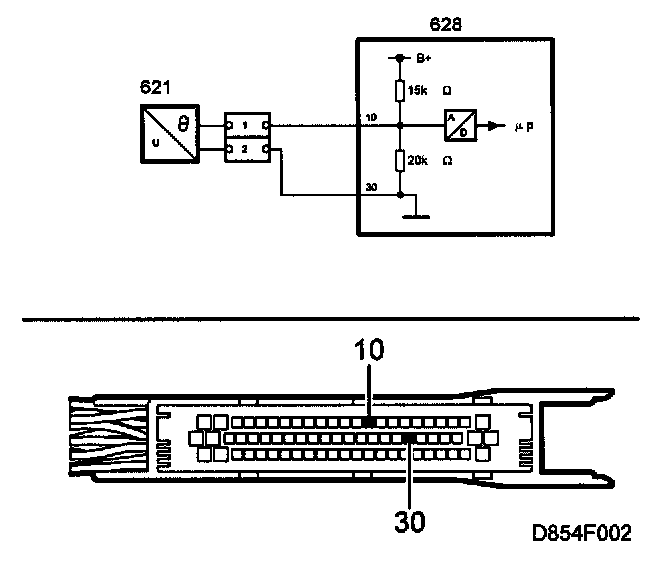

Anti-freeze sensor. Shorted to ground
Anti-freeze sensor. Open circuit/Shorted to B+
Anti-freeze sensor. Outside specified range







Fault symptom
The anti-freeze sensor on the evaporator outlet pipe stops functioning, resulting in no cold from the A/C system.

Diagnostic help
The temperature on the anti-freeze sensor can be checked using the diagnostics tool.
