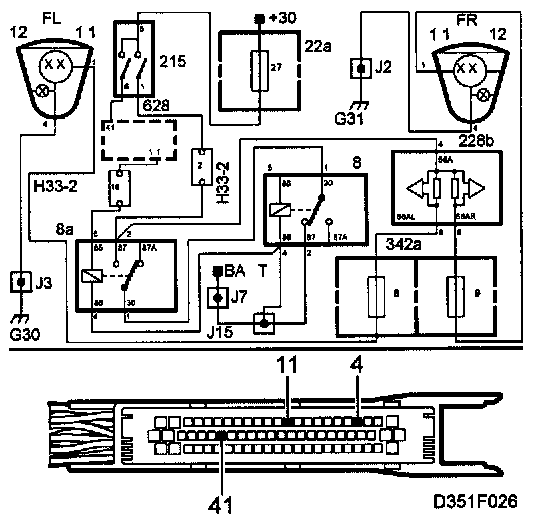

B2280

Dipswitch Relay

B2280:

Fault symptoms
Dipswitch malfunction

Condition
The control module output is monitored and a DTC generated if there is a:
- Open/short circuit to ground.
- Shorting to battery positive B+.
DTCs are not generated if the voltage is below 11V or during diagnostic communication.

Diagnostic help
The output from DICE can be activated with the diagnostic tool.
DTCs are not generated if the voltage is below 11V or during diagnostic communication with DICE.
