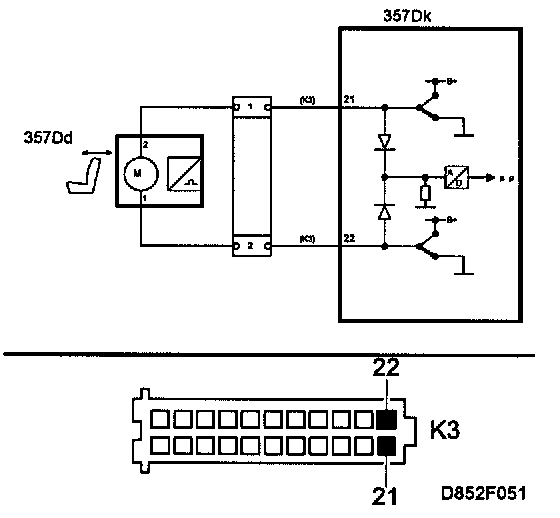

B2157

Seat Front Motor. Open Circuit

Seat Front Motor. Short to Ground







Fault symptoms
The motor for the seat front cannot be operated either manually or via the memory settings.

Conditions
The voltage at the output to the relay which supplies the power to B+ is less than 6.9V.

Diagnostic help
The probable cause is that the motor is faulty or there is a short-circuit between the motor connections.
