B2147

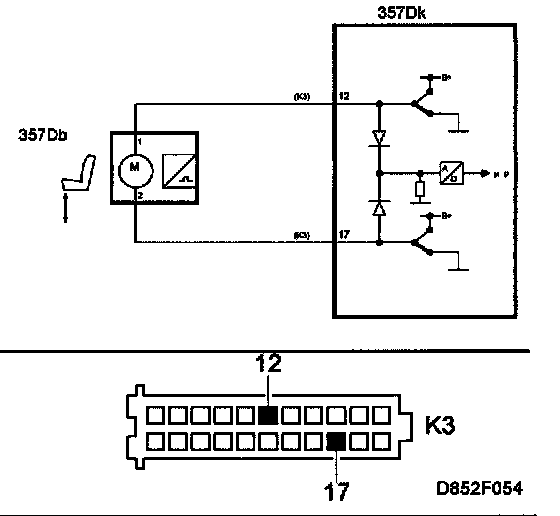

Backrest Motor. Open Circuit

Brackrest Motor. Short to Ground







Fault symptoms
The motor for the backrest adjustment cannot be operated either manually or via the memory settings.

Conditions
The voltage at the output to the relay which supplies the power to B+ is less than 6.9V.
