B2116

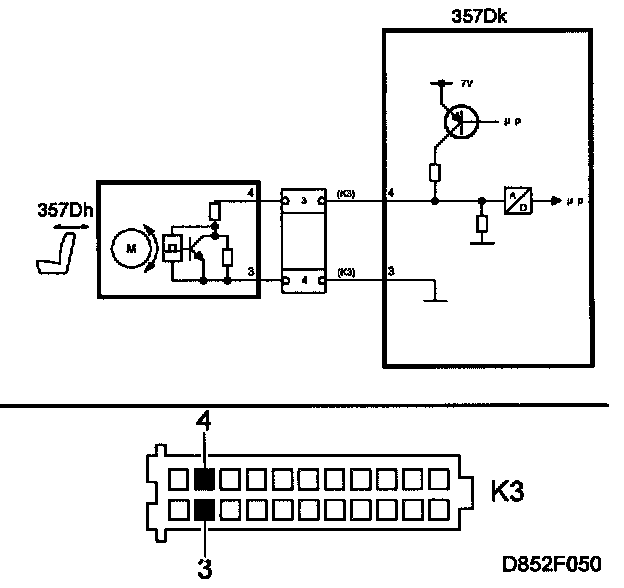

Backrest Hall Sensor. Short to Ground

Backrest Hall Sensor. Open Circuit/Short to B+







Fault symptoms
The motor for the backrest adjustment cannot be operated.

Conditions
Open circuit/short-circuit to B+.
Short-circuit to ground
