B2106

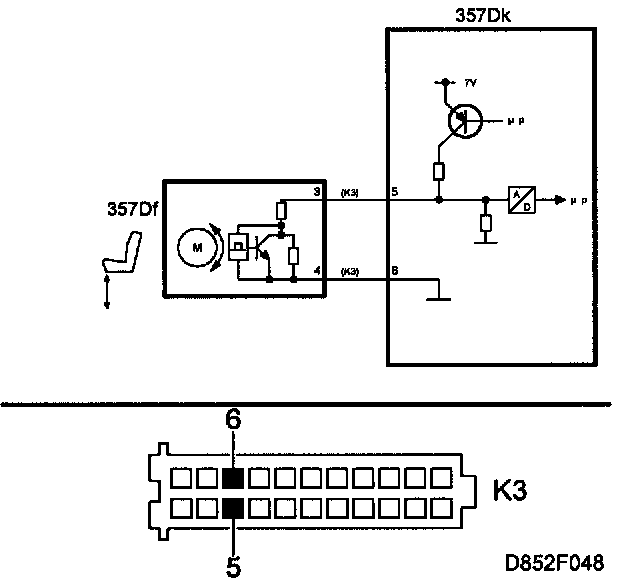

Seat Front Hall Sensor. Short to Ground

Seat Front Hall Sensor. Open Circuit/Short to B+







Fault symptoms
The motor for the seat front can be operated for 500 ms.

Conditions
Open circuit/short-circuit to B+.
Short-circuit to ground
