B1795

Tilt Sensor. Internal Fault

Tilt Sensor. No Response







Fault symptoms
The message "SERVICE THEFT ALARM" is shown on SID.

Conditions

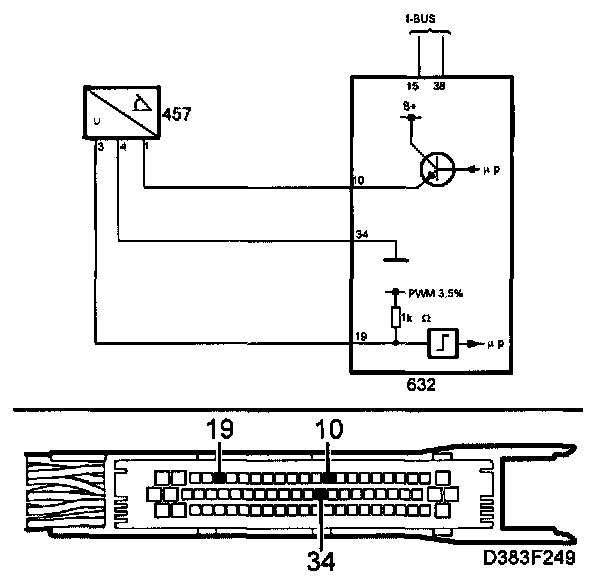

Break in the communication to the tilt sensor.

Diagnostic help
May be due to a break/short-circuit in the wiring harness.

Main condition
The diagnostic trouble code is generated if a fault is found during two test cycles in succession. A test cycle lasts one second, i.e. it takes two seconds from when the fault occurs until a diagnostic trouble code is generated. If the fault disappears, the trouble code is deleted from the control module memory after the ignition has been turned on 20 times.

Diagnostic trouble codes are not generated if the voltage is below 11 V or over 14 V.

Check wiring harness.
Jiggle the wiring harness at several points and in different directions to reveal intermittent breaks and short-circuits in the leads.

Observe the multimeter, test lamp or diagnostic instrument during the test.
