B1620

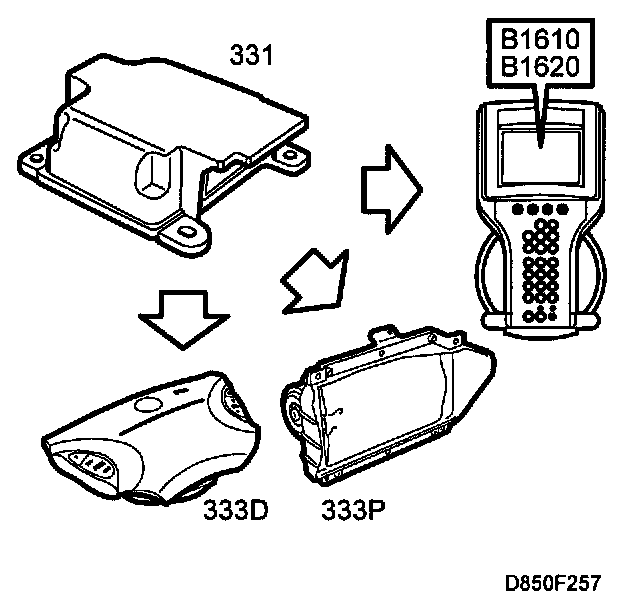

B1610 Control Module. Programmed With Wrong Configuration

B1620 Control Module. Not Programmed







Fault symptoms
Airbag warning lamp on.

Conditions
The following conditions are applicable to the respective diagnostic trouble codes:

B1610
- Control module wrongly configured.

B1620
- Control module is not configured.

Procedure
Check if there are other diagnostic trouble codes in the SRS, and use these for diagnosis.
If diagnostic trouble codes B1610 and B1620 persist, Before Changing A Control Module
Compare control module configuration, Configuration of SRS Control Module
If diagnostic trouble codes B1610 and B1620 persist, change the control module, Service and Repair
