Dashboard Integrated Central Electronics (DICE)

B1605

Internal Fault

Fault symptoms
Varies depending on fault characteristics.

Conditions
The control module on-board diagnostics has detected an internal fault.

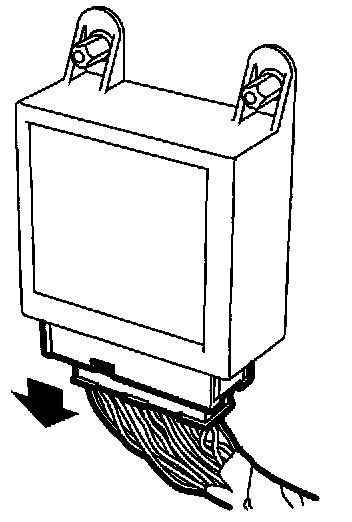

Checking the wiring harness
Move the wiring harness at various points and in different direction to detect any intermittent breaks or short circuits. Observe the multimeter, test lamp or diagnostics tool while checking.






Diagnostic procedure

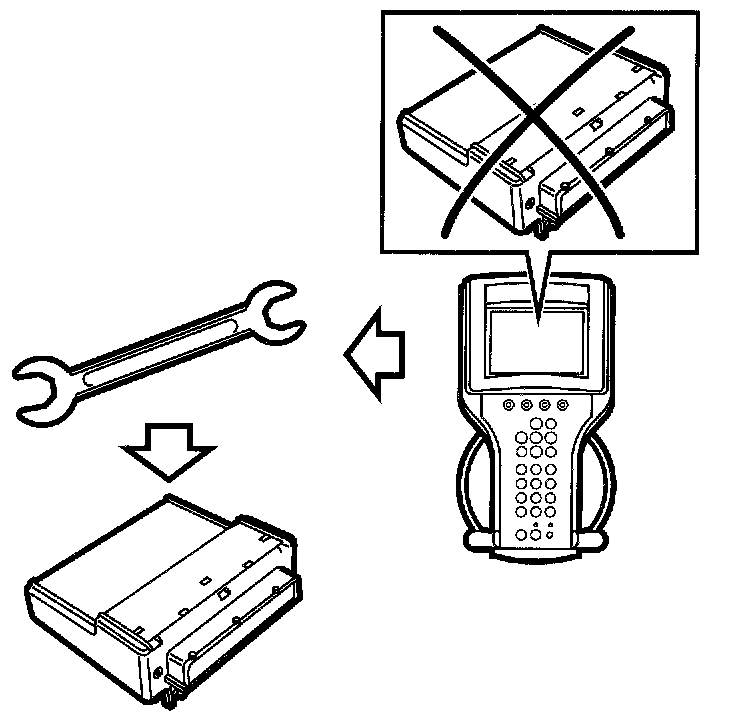

1. Internal control module fault
- Change the control module.
