B1220

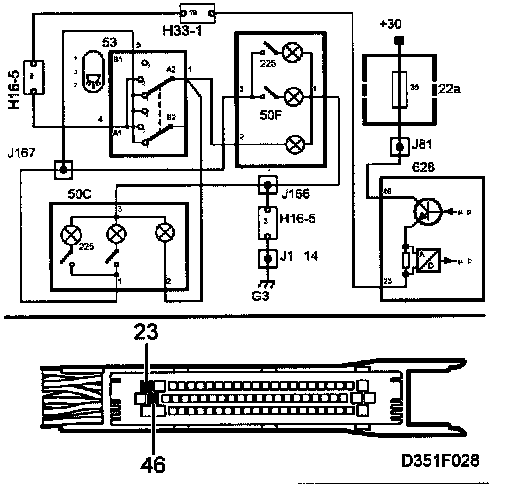

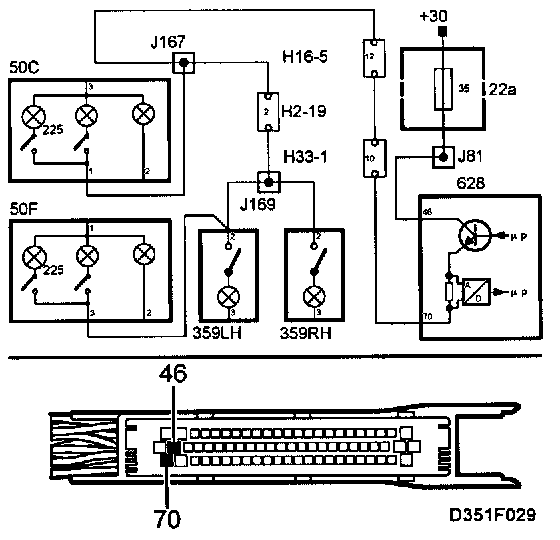

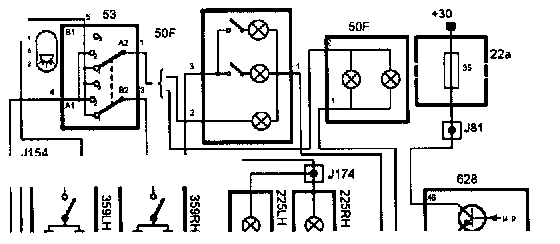

Reading lights


















Fault symptoms
Map lights not working.

Condition
The output is overload protected and is out if the load is too high. A DTC is generated if this occurs.
DTCs are not generated if the voltage is below 11V or during diagnostic communication.

Diagnostic help
Make sure the bulb is the correct rating.
If a lamp with too high a rating is fitted, diagnostic trouble code B1220 can be generated.
The overload protection is reset by turning the ignition OFF and then ON.


IMPORTANT
The DICE control module can be damaged if a bulb with incorrect rating is fitted.
