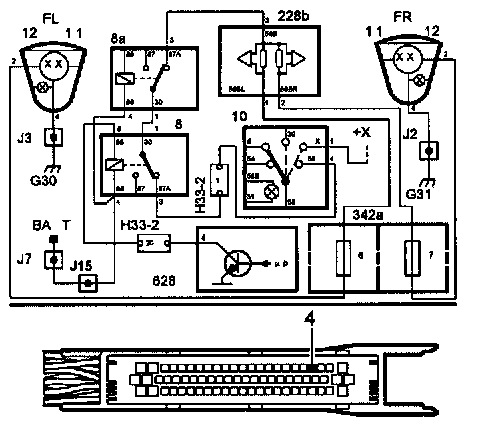

B1160




Dipped Beam Relay


B1160:






Fault symptoms
Dipped beam does not work
Dipped beam malfunction

Condition
The control module output is monitored and a DTC generated if there is a:
- Open/short circuit to ground.
- Shorting to battery positive B+.
DTCs are not generated if the voltage is below 11V or during diagnostic communication.

Diagnostic help
The output from DICE can be activated with the diagnostic tool.
DTCs are not generated if the voltage is below 11V or during diagnostic communication with DICE.
