ACTIVATE Command Menu

NOTE: When a system function is activated by means of the ISAT scan tool, the transmission control module executes a command which is not functionally normal. In activation mode the ISAT scan tool checks the functionality of the transmission control module and this command should therefore be used with discrimination. Leaving the activation mode and continuing in the ISAT scan tool menu always resets an activated function. Always clear any diagnostic trouble codes in the transmission system or any other system when your work is finished.

IMPORTANT: Activation mode can be selected only in gear position N. In other gear positions the ISAT scan tool display will read SHIFT TO N AND THEN PRESS ENTER.
All activation commands can be interrupted with ESC.

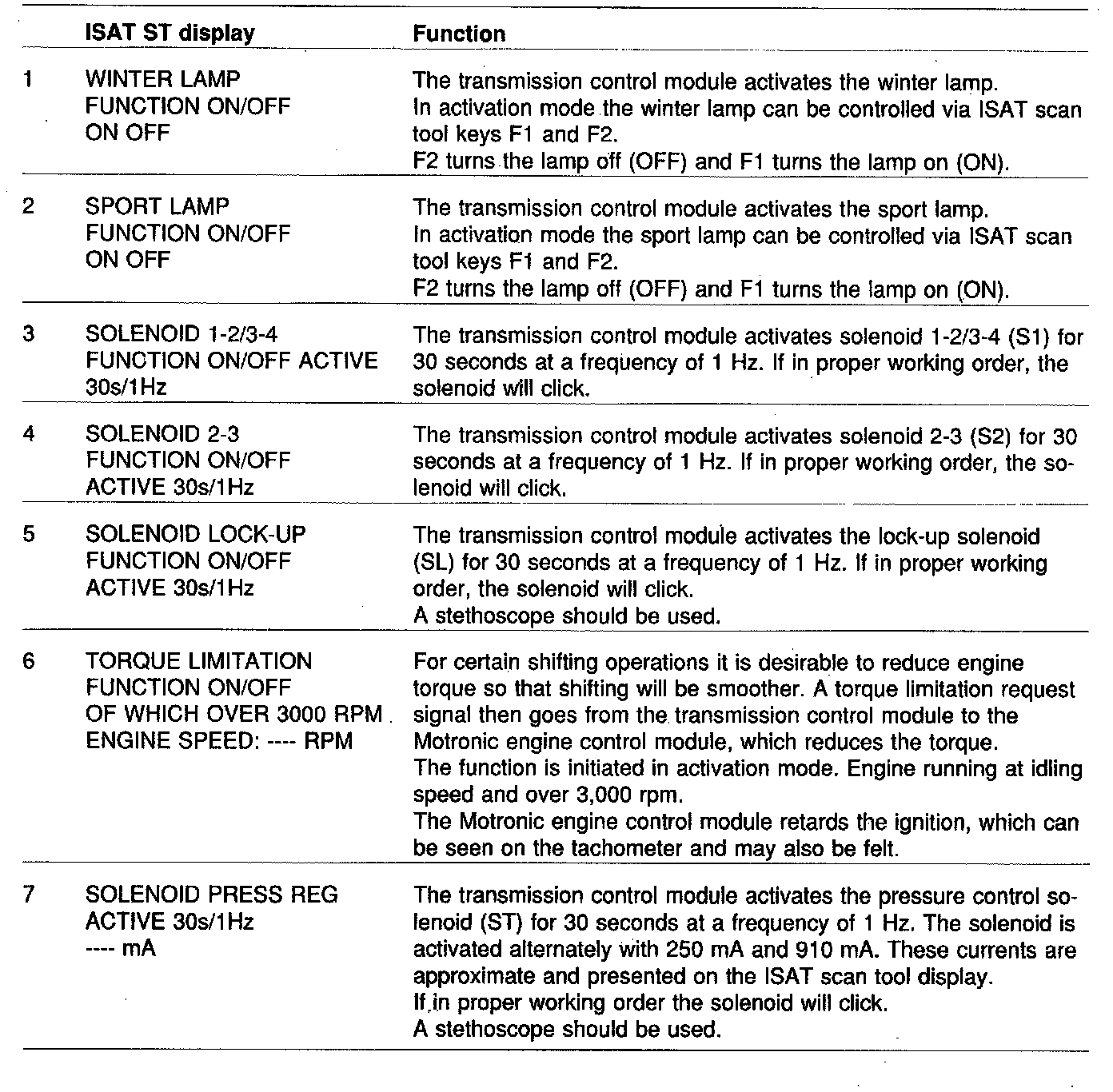

Chart 1 of 2

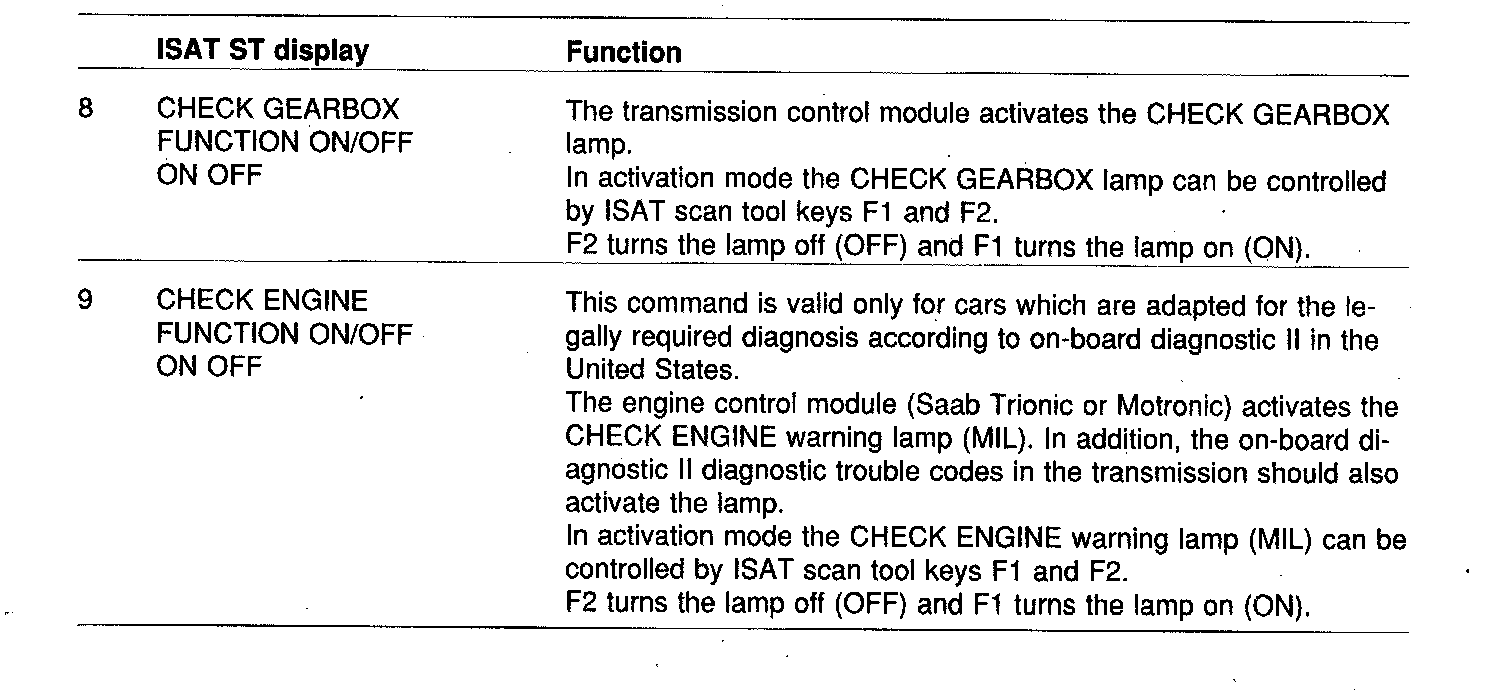

Chart 2 of 2
