Differential Side Seal, Automatic Transaxle

Removal
1. Right-hand side: Remove the intermediate shaft, see Steering and Suspension.
Left-hand side: Swing out the drive shaft, see Steering and Suspension.

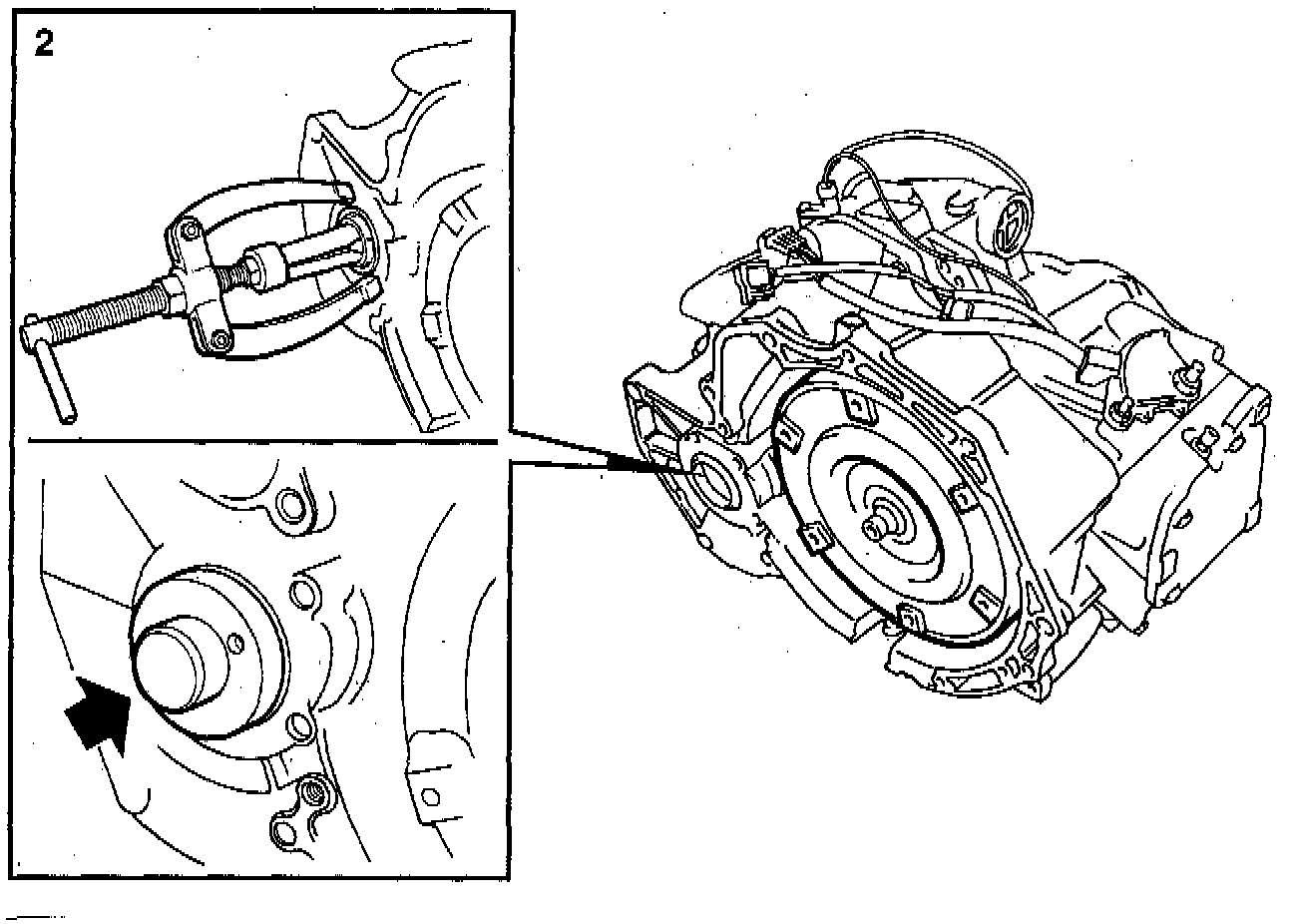

2. Remove the seal using puller tool No. 87 92 350 and support tool No. 87 91 683, or equivalents.

Installation
1. Install the new seal using driver tool No. 83 90 122, or equivalent.
2. Reverse procedure to install.
