WINTER Indicator Lamp

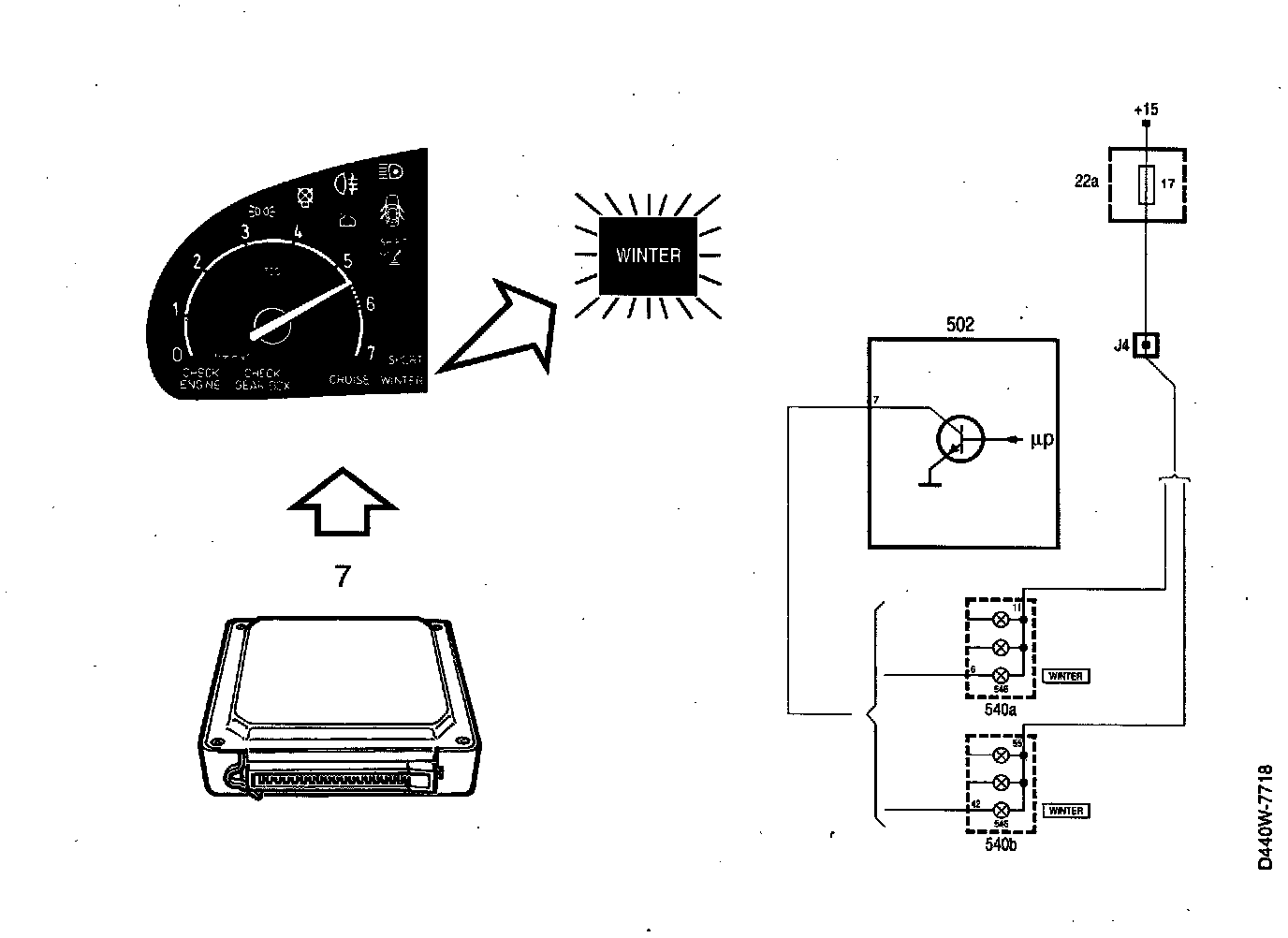

On activation of the WINTER gear-shifting program, the WINTER indicator lamp in the main instrument display panel will light up.

The lamp is grounded via pin 7 of the transmission control module and supplied with current (+15 circuit) via the main instrument display panel.
