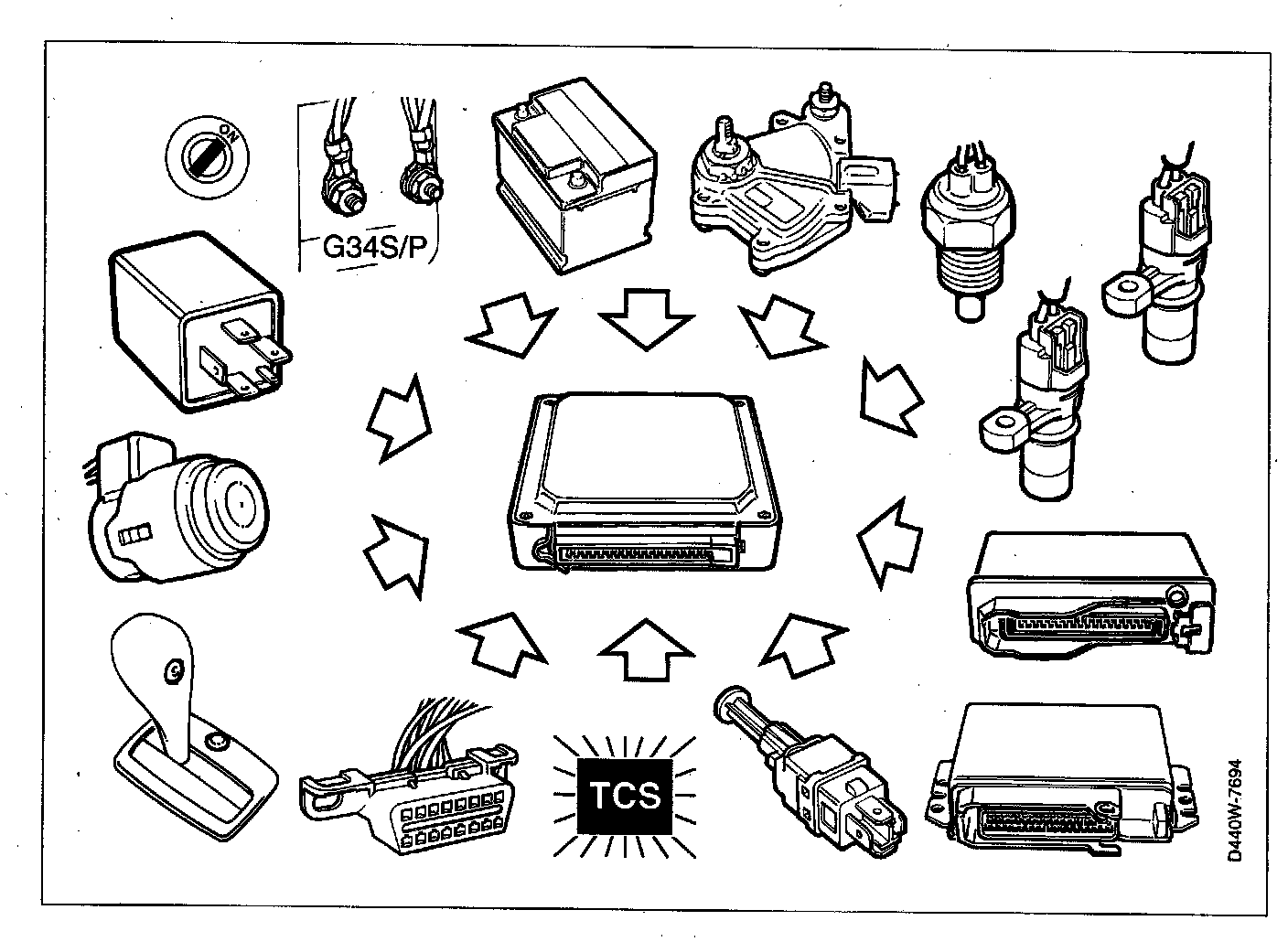

Transmission Control Module Inputs

^ Input shaft speed sensor
^ Output shaft speed sensor
^ Transmission fluid temperature sensor
^ Gear selector position sensor
^ Throttle position
^ TCS throttle position
^ TCS ACTIVE
^ Switch brake lights
^ ISAT scan tool communication
^ Switch, SPORT
^ Switch, WINTER
^ Switch, kick-down
^ Shift lock relay
^ Power supply
^ Ground
