G33S

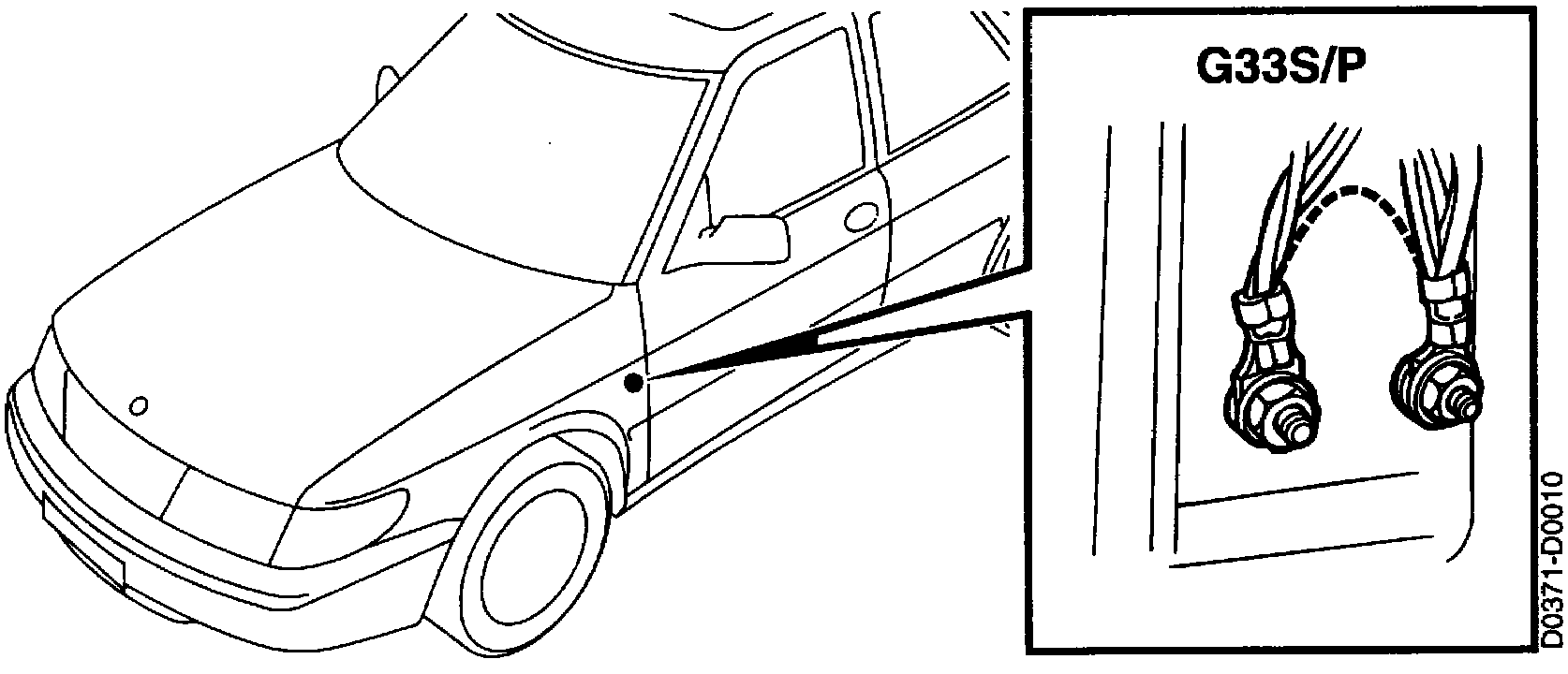

Grounding Points: G33P, G33S:

The following components are always connected to grounding point G33S below the A pillar in the cabin on the left-hand side (cable with yellow tape):
88 Switch, extra fog lights
161 Switch, rear fog lights
445 Data link connector
540A Main instrument display panel 1
540B Main instrument display panel 2

On LHD cars the following components are connected to grounding point G33S:
21 Relay, ignition switch
276 Bonnet switch, anti-theft alarm
405 Relay, reversing lights, automatic transmission
416 Relay, EXH warning
437 SHIFT LOCK relay
500 Control module, ICE
517 Starter relay

On RHD cars the following components are connected to grounding point G33S:
502 Control module, TCM
