G27

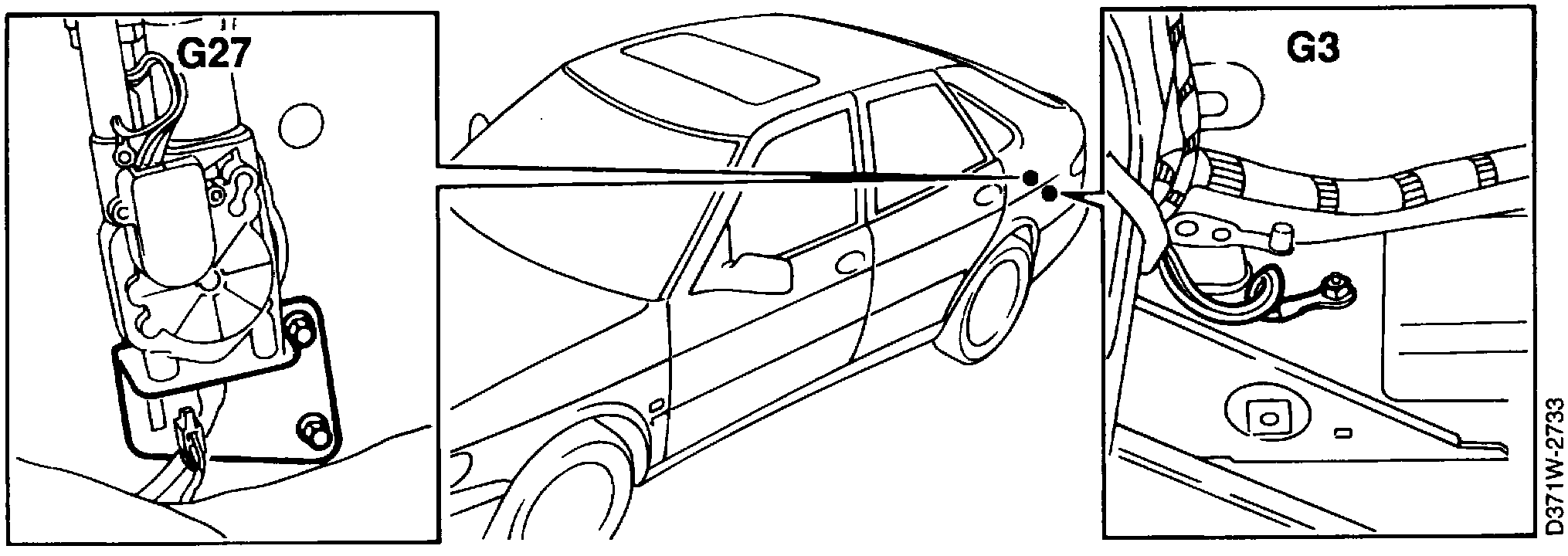

Grounding Points: G3, G27:




The following component is connected to grounding point G27 in the luggage compartment on the bracket for the motorized aerial:

265 Motorized aerial
