Driver Side Replacement

Removal

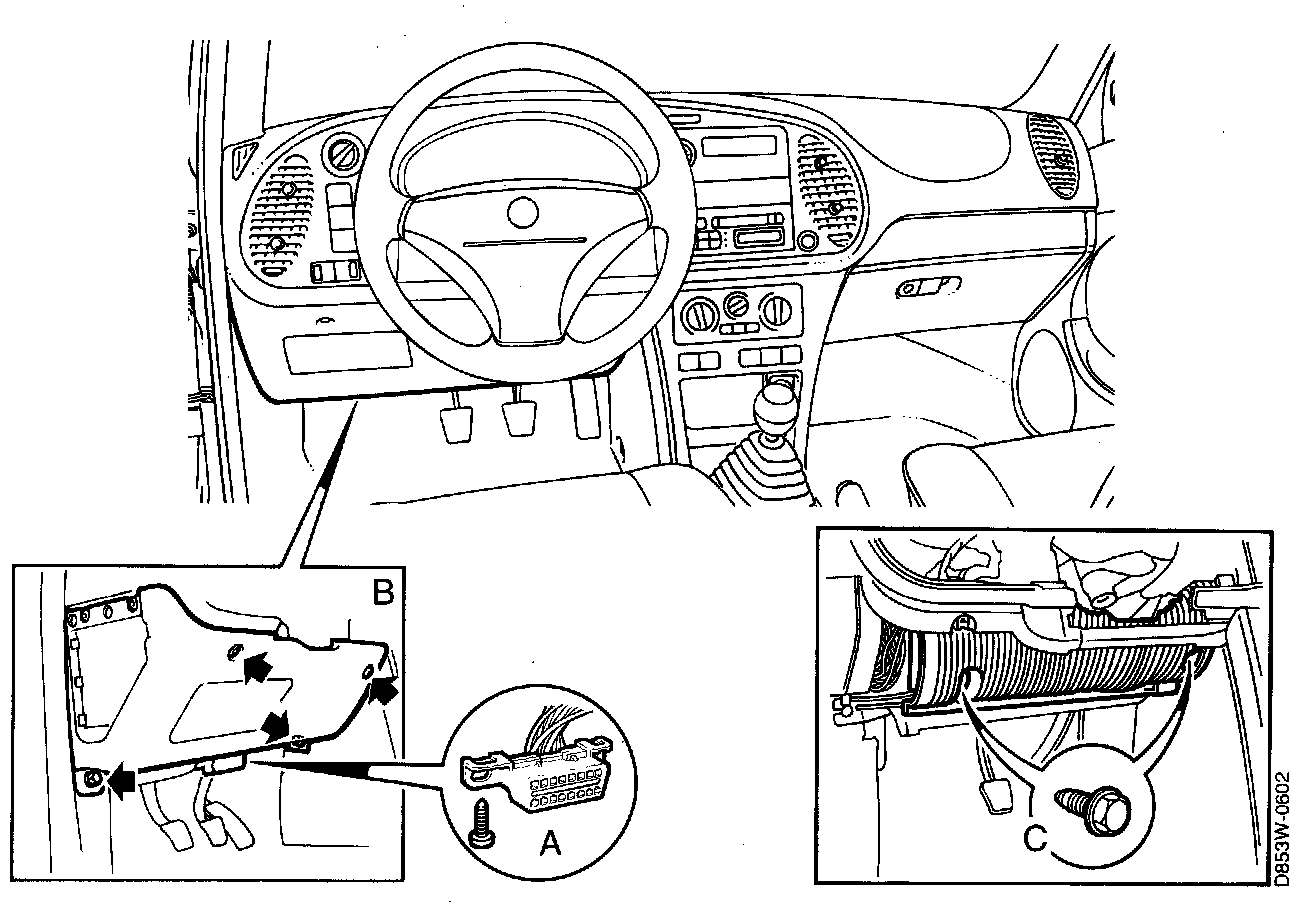

1. Remove the data link connector which is located on the lower section of the facia on the driver side (A).
2. Undo the lower panel securing screws and the expansion rivets in the front edge. The expansion rivets are removed by first pushing the center pin further into the rivet (B).
3. Remove the bolts (2) securing the knee member and lift it out (C).

Installation
1. Place the knee member in position and tighten the two bolts (C).
2. Refit the lower panel below the steering wheel (B).
3. Refit the data link connector (A).
