SRS - Multiple Trouble Codes Set: Overview
MI No. 850-2251PI No.
Date: March 2001
Distr: all
900

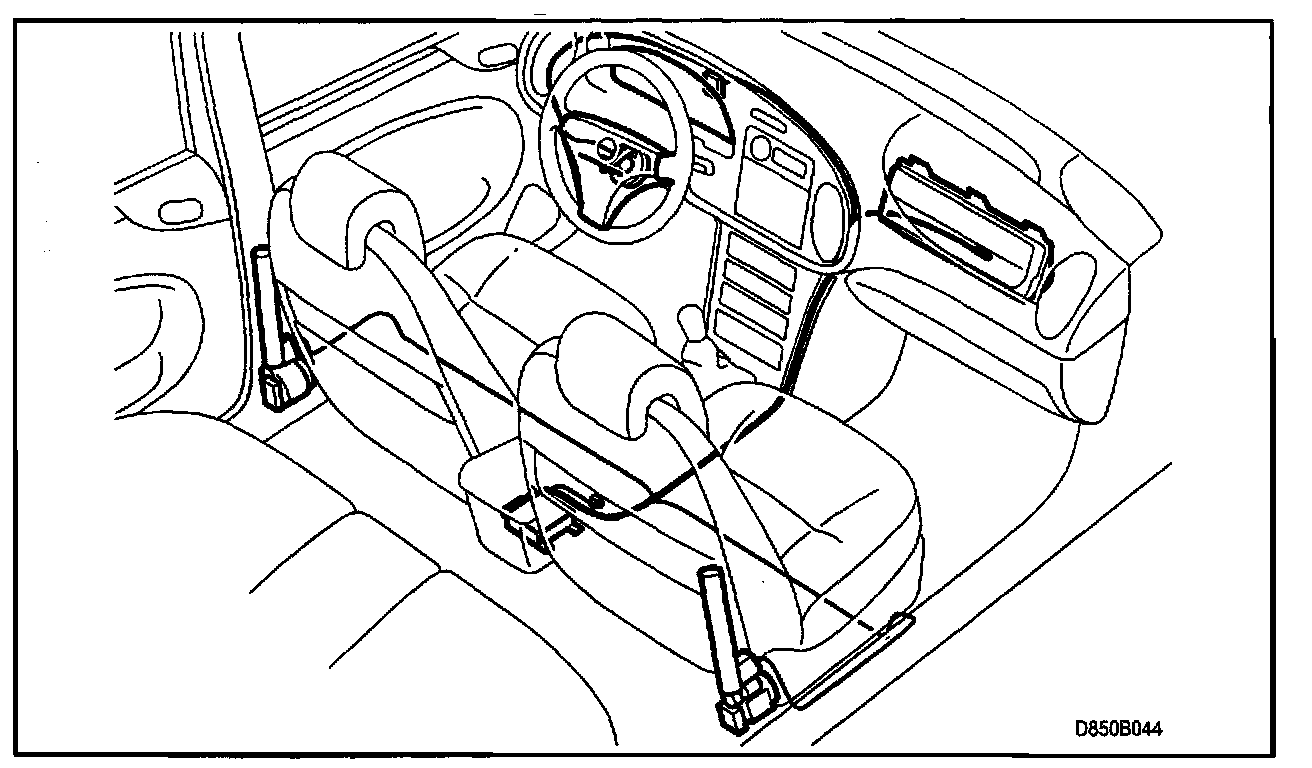

Replacement of SRS wiring harness
Cars affected
1995-1998 Saab 900 All
Background
When doing diagnostic work on the SRS of a Saab 900 up to six diagnostic trouble codes can appear. These are B2332, B2337, B2442, B2447, B1332 and B1337. Do not immediately assume that the control unit is faulty. We have found that these codes can be caused by a faulty wiring harness. If four or more of these codes appear simultaneously, replace the wiring harness. It is not necessary to replace the cars main harness because a partial harness is available as a separate part.
Parts required
52 48 604 Wiring harness, LHD airbag

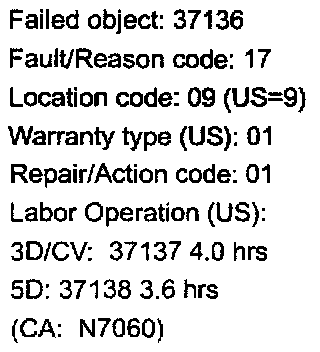

Warranty/Time Information
DISCLAIMER
