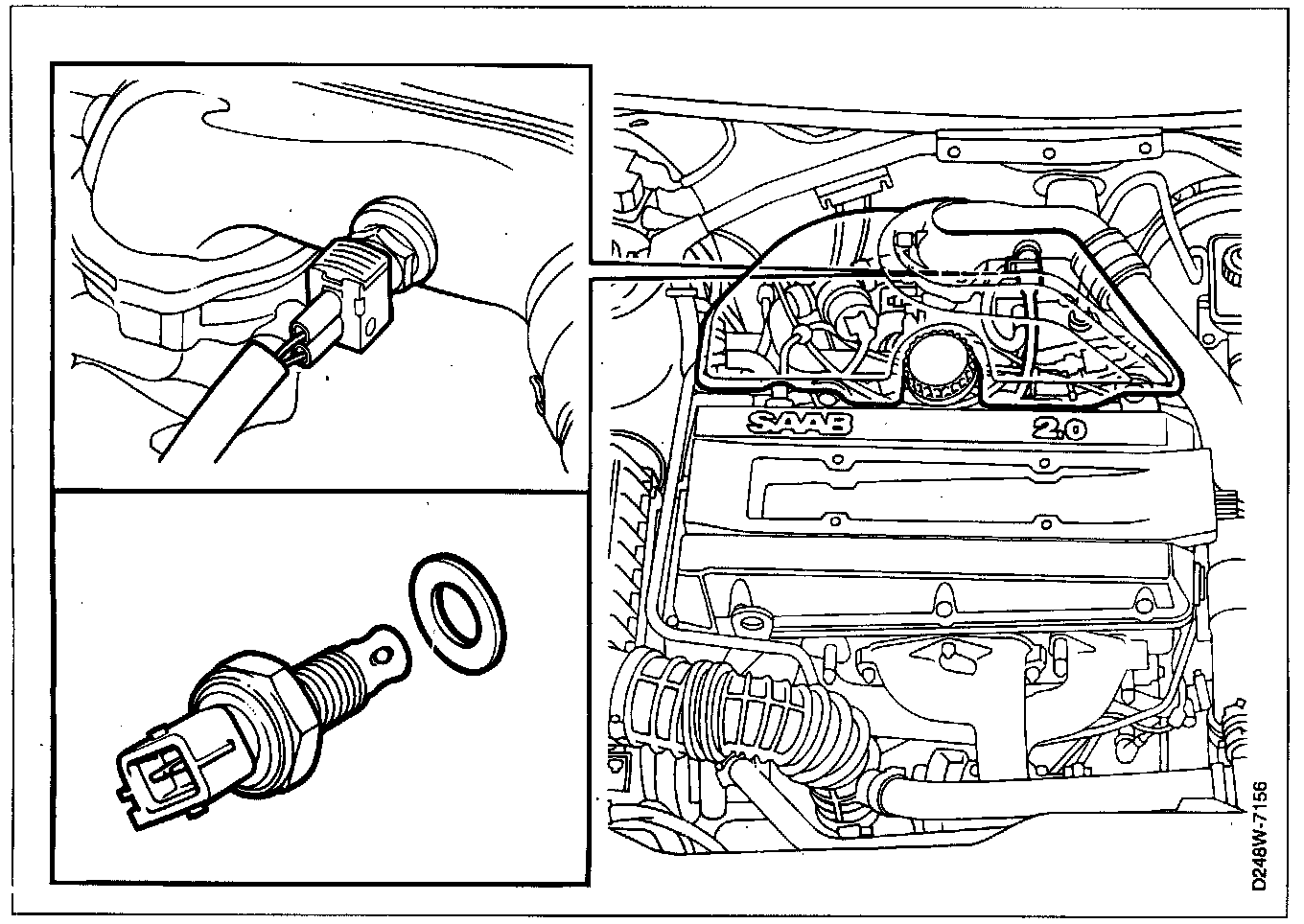

Air Temperature Sensor ( Ambient / Intake ): Service and Repair
To Remove
1.
Remove the engine cover.
2.
Unplug the connector.
3.
Remove the sensor.
To Install
Install in reverse order.
