Low Fuel Lamp

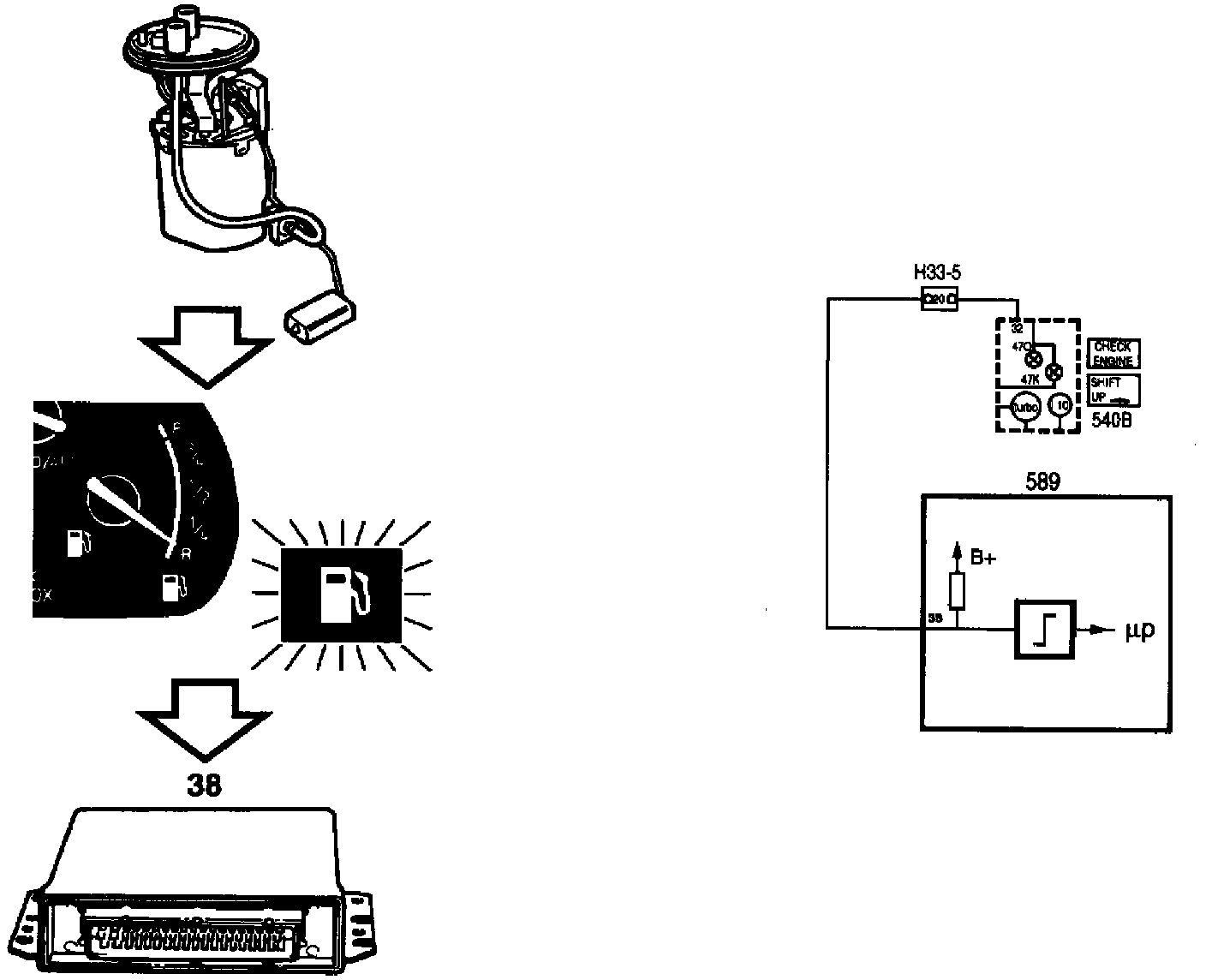

When the amount of fuel in the tank drops below 10 litres the "low fuel level" indicator lamp in the main instrument display panel lights up. At the same time, the main instrument display panel grounds pin 38 of the Trionic engine control module.

This function is used solely for the OBD II system.
