Component Locations
_�V:

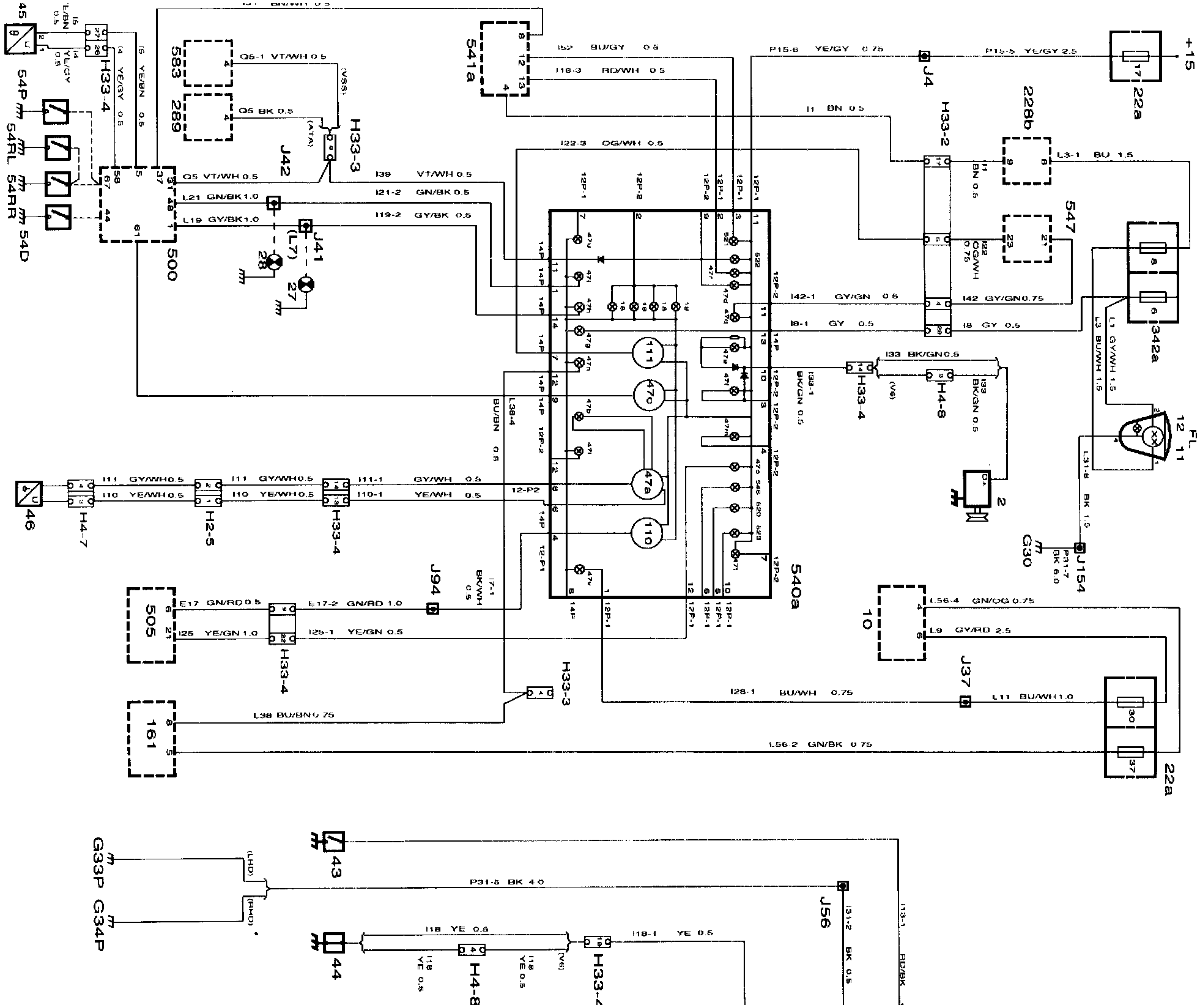

Wiring Diagram, Main Instrument Display Panel 1
2 Generator, at rear of engine on RH side.
10 Lights stalk switch on left (LHD) or right (RHD) side of steering wheel.
11 Main beam lamp.
12 Dipped beam lamp.
16 Rheostat, to left (LHD) or right (RHD) of steering wheel.
22a Main fuse box, behind the access flap in the glove box.
27 Direction indicator lamps, LH, in front and rear light clusters.
28 Direction indicator lamps, RH, in front and rear light clusters.
42 Brake fluid warning lamp switch on brake fluid reservoir.
43 Handbrake switch under the centre console by the handbrake lever.
44 Oil pressure sensor on the sump.
45 Coolant temperature sensor on LH side of engine.
46 Fuel level sensor in fuel tank.
54 Door switch in door openings.
161 Rear fog light switch to left (LHD) or right (RHD) of steering wheel.
228b Front filament monitor in main fuse box in engine bay.
289 Anti-theft alarm control module under LH front seat.
331 Airbag control module under centre console behind the handbrake lever.
342a Main fuse box in the engine bay.
416 EXH relay in main fuse box in dashboard.
500 ICE control module on top of relay holder adjacent to steering column.
502 TCM control module on bulkhead partition behind the glove box.
505 M2.10.3 control module on RH side behind the side trim below the A pillar.
508 Cruise Control system control module in engine bay on RH side below the windshield.
540a Main instrument display panel 1
541a Saab Information Display (SID) unit in centre of dashboard.
547 ABS control module integrated in brake unit in engine bay.
583 Anti-theft alarm with VSS under LH front seat.
H2-5 Under the cover under the rear seat.
H4-7 Adjacent to the fuel pump under the rear seat.
H4-8 Brown connector on LH side of engine below the cable conduit.
H33-2 Black 33-pin connector on bracket below left-hand A pillar.
H33-3 Grey-blue 33-pin connector on bracket below left-hand A pillar.
H33-4 On bulkhead partition behind the glove box.
G30 Grounding point, LH structural member behind the battery.
G33S Grounding point, connector bracket (Signal) below left-hand A pillar.
G33P Grounding point, connector bracket (Power) below left-hand A pillar.
G34P Grounding point, control module bracket (Power) below right-hand A pillar.
Ԅ�V:

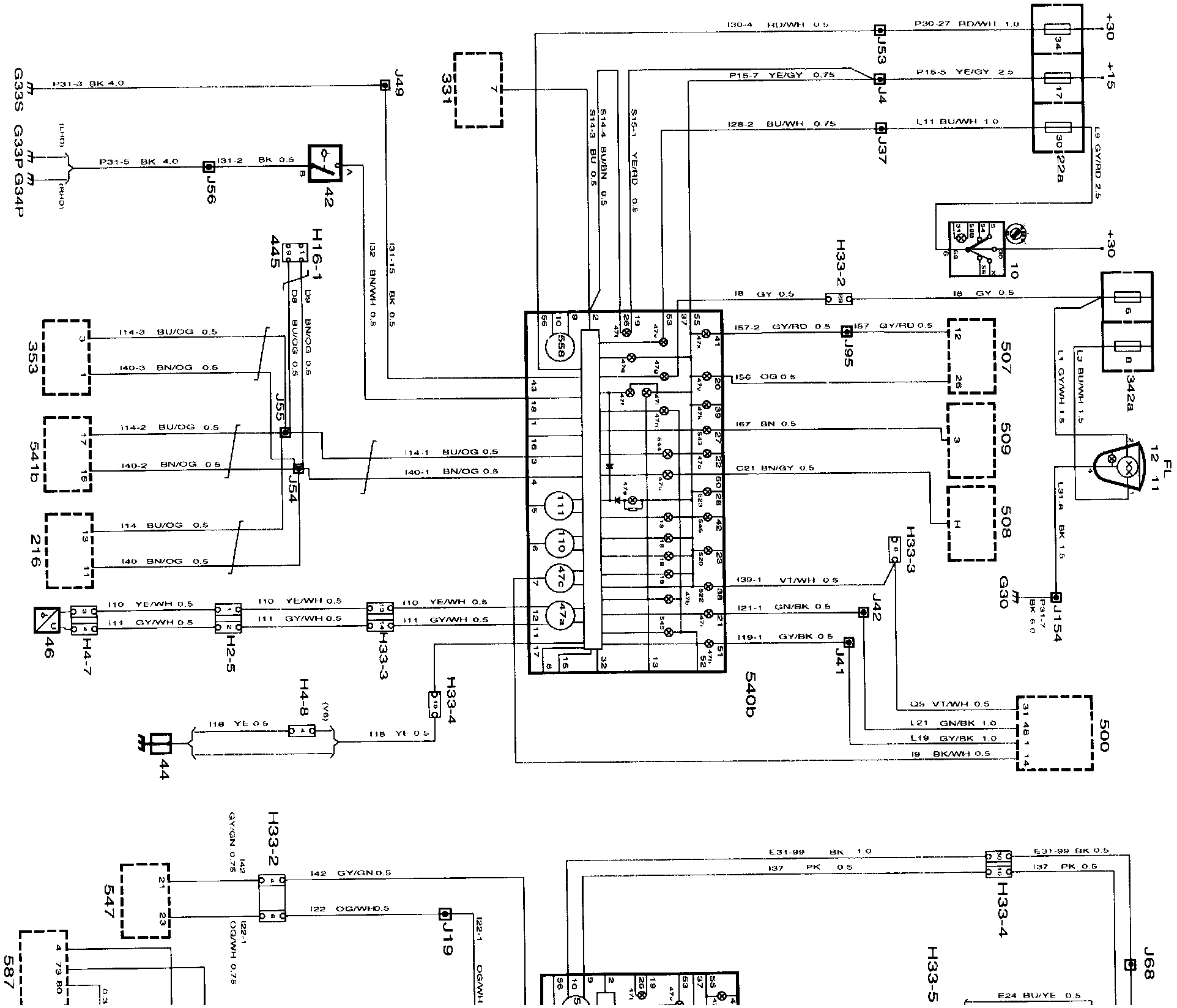

Wiring Diagram, Main Instrument Display Panel 2
2 Generator, at rear of engine on RH side.
10 Lights stalk switch on left (LHD) or right (RHD) side of steering wheel.
11 Main beam lamp.
12 Dipped beam lamp.
22a Main fuse box, behind the access flap in the glove box.
42 Brake fluid warning lamp switch on brake fluid reservoir.
43 Handbrake switch under the centre console by the handbrake lever.
44 Oil pressure sensor on the sump.
46 Fuel level sensor in fuel tank.
161 Rear fog light switch to left (LHD) or right (RHD) of steering wheel.
216 Climate control unit in the centre console.
228b Front filament monitor in main fuse box in engine bay.
289 Anti-theft alarm control module under LH front seat.
331 Airbag control module under centre console behind the handbrake lever.
342a Main fuse box in the engine bay.
353 Radio and cassette player in centre console.
416 EXH relay in main fuse box in dashboard.
430 Trionic engine management system control module on RH side behind the side trim below the A pillar.
445 Data link connector under dashboard
(H16-1) adjacent to steering wheel.
500 ICE control module on top of relay holder adjacent to steering column.
502 TCM control module on bulkhead partition behind the glove box.
505 M2.10.3 control module on RH side behind the side trim below the A pillar.
507 TCS control module under RH front seat.
508 Cruise control system control module in engine bay on RH side below the windshield.
509 Sensonic control module on bulkhead partition behind the glove box.
510 M2.8.1 control module on RH side behind the side trim below the A pillar.
540b Main instrument display panel 2.
541b SID unit in centre of dashboard.
547 ABS control module integrated in brake unit in engine bay.
583 Control module, anti-theft alarm with VSS under LH front seat.
586 M4.1 control module on RH side behind the side trim below the A pillar.
587 M5.2 control module on RH side behind the side trim below the A pillar.
589 Trionic OBDII control module on RH side behind the side trim below the A pillar.
H2-5 Under the cover under the rear seat.
H4-7 Adjacent to the fuel pump under the rear seat.
H4-8 Brown connector on LH side of engine below the cable conduit.
H33-2 Black 33-pin connector on bracket below left-hand A pillar.
H33-3 Grey-blue 33-pin connector on bracket below left-hand A pillar.
H33-4 LHD: On the bulkhead partition behind the glove box.
RHD Below the engine control module behind the side trim on the RH side.
H33-5 LHD: On the bulkhead partition behind the glove box.
RHD Below the engine control module behind the side trim on the RH side.
G33S Grounding point, connector bracket (Signal) below left-hand A pillar.
G33P Grounding point, connector bracket (Power) below left-hand A pillar.
G34P Grounding point, control module bracket (Power) below right-hand A pillar.
