Preliminary Information

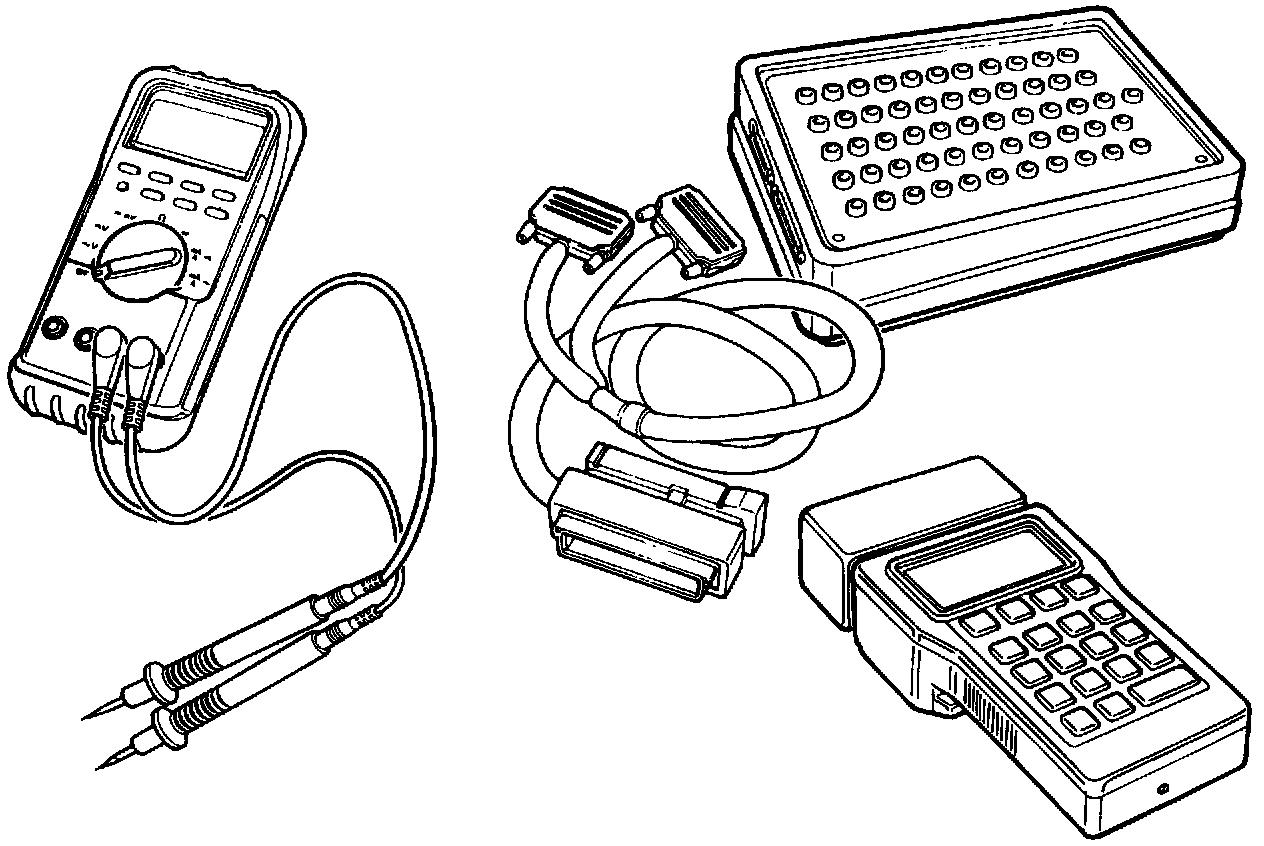

Following you will find figures and instructions for taking readings of voltage levels on the main instrument display panel and its control module.

Remember:
- Readings should be taken via a Break Out Box (BOB) connected between the control module and its connector.
- Several voltage levels should be regarded as guiding values. Use your common sense when judging whether a particular reading is correct or not.
- If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which ought to be checked more thoroughly.
- All test readings should be taken with the engine warmed up to normal operating temperature.
- Unless otherwise specified, the ignition should be switched on.
- The test readings indicated are in respect of calibrated FLUKE 88/97.
