Fault Diagnosis, Main Instrument Display Panel 2
>>

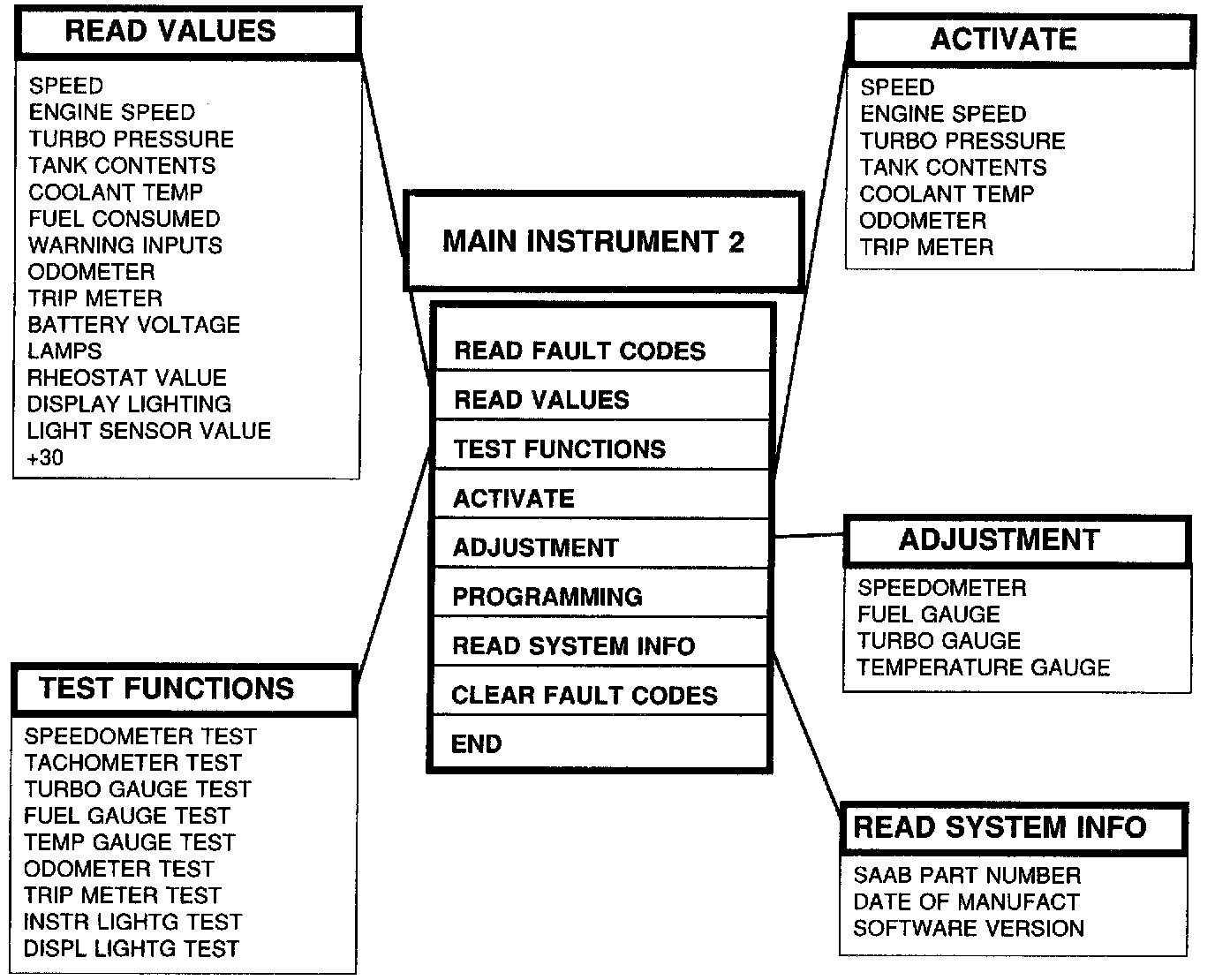

ISAT Scan Tool, Menu Structure
ISAT Scan Tool, Menu Structure

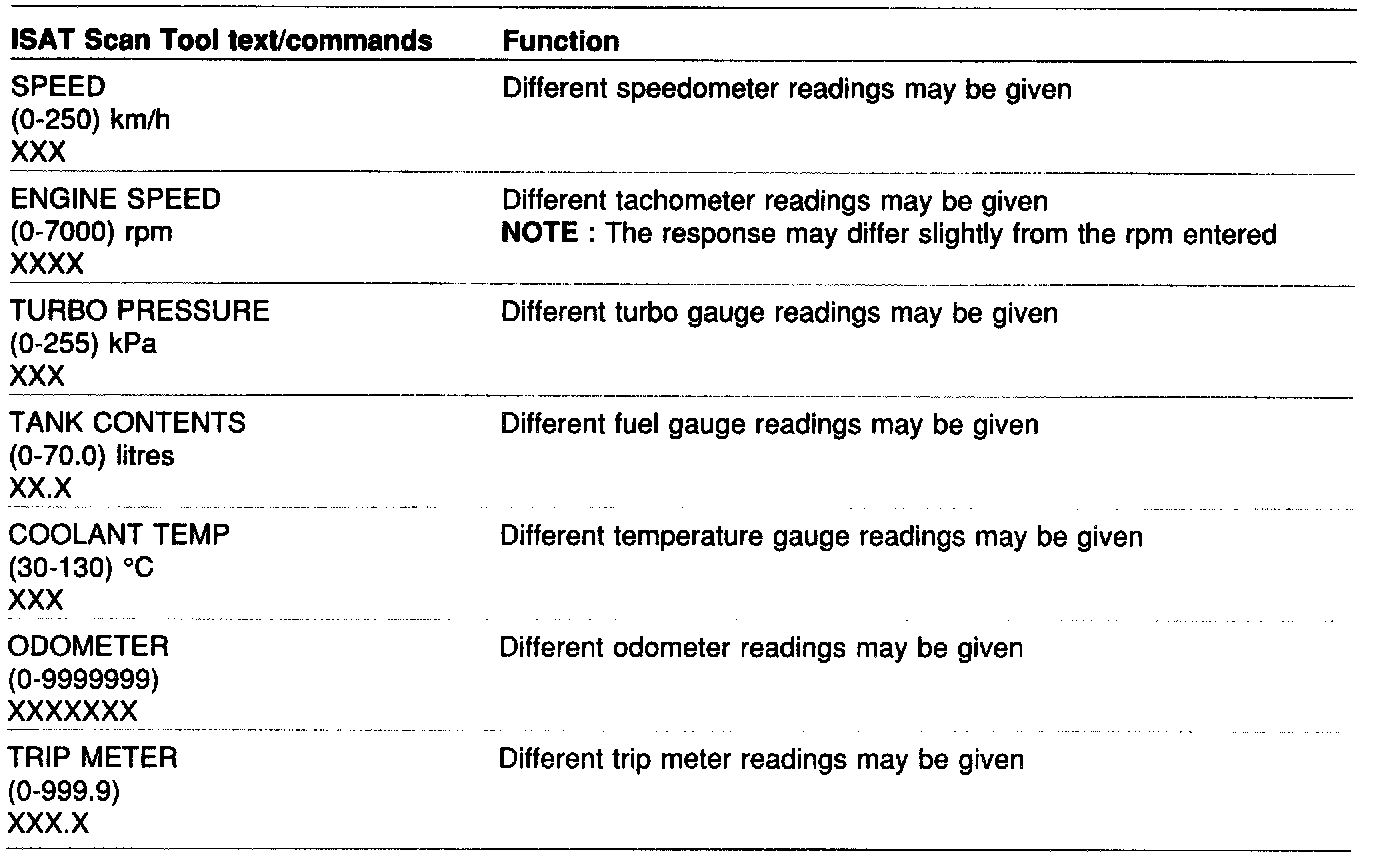

When using activation commands, select "ON" for activation and "OFF" for deactivation.
To return to normal operation you must leave the activation menu.
