Control Module, Main Instrument Display Panel 2

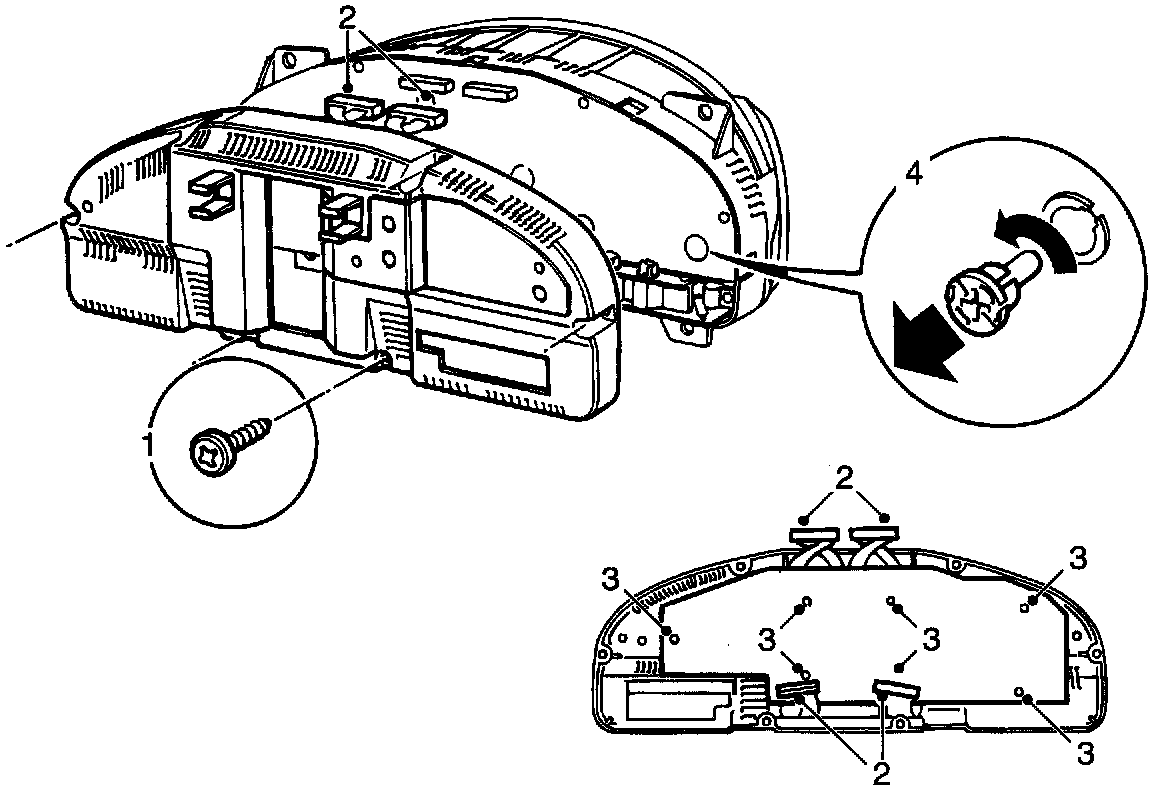

1 Remove the 6 screws securing the rear unit and the two screws securing the control module at the rear.
2 Unplug the four connectors between the control module and the instrument unit.
Be careful to cover all the cables as there is a risk of the pins sliding out of the connectors.
3 Remove the 7 screws securing the control module to the rear unit.
