Instrument Panel Circuit Board: Service and Repair

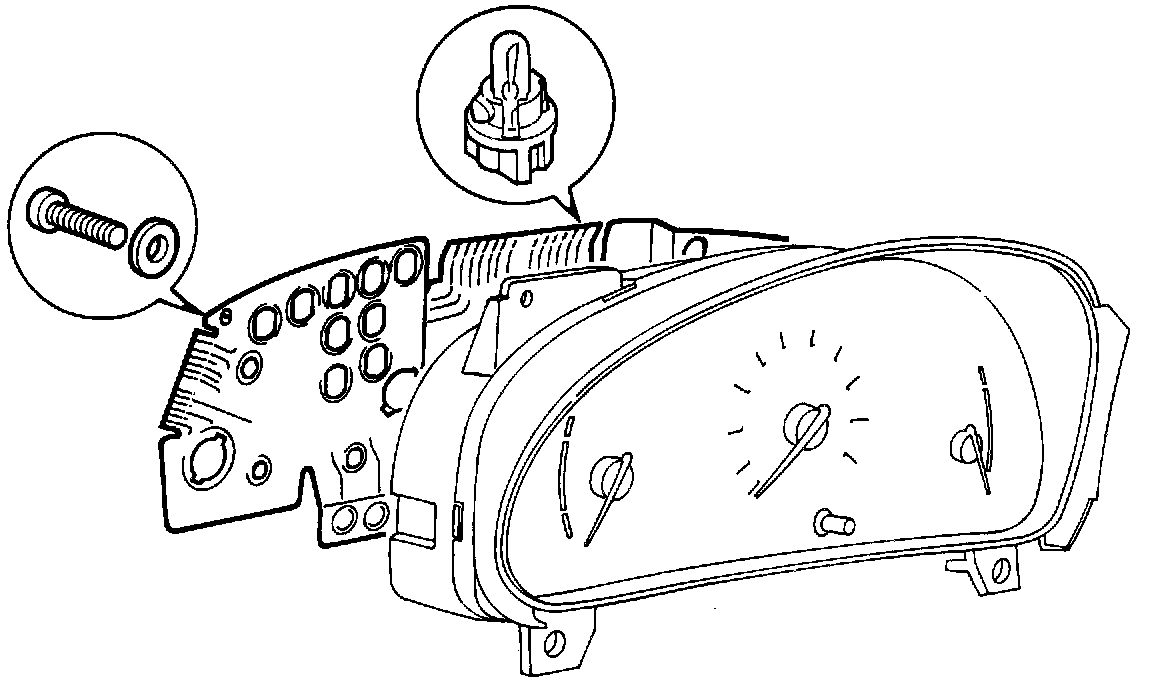

- Remove all the bulb sockets and be careful to make a note of where the GREY one was filled.
- Remove the 3 steel screws and the 7 brass screws.
- Carefully lift off the conductive foil.

To fit
- Install the conductive foil carefully on the rear unit and refit the bulbs in their right places.


NOTE: Make sure that the screws are fitted in the correct places.


Take care to install the GREY bulb socket in its correct place.
