Installation

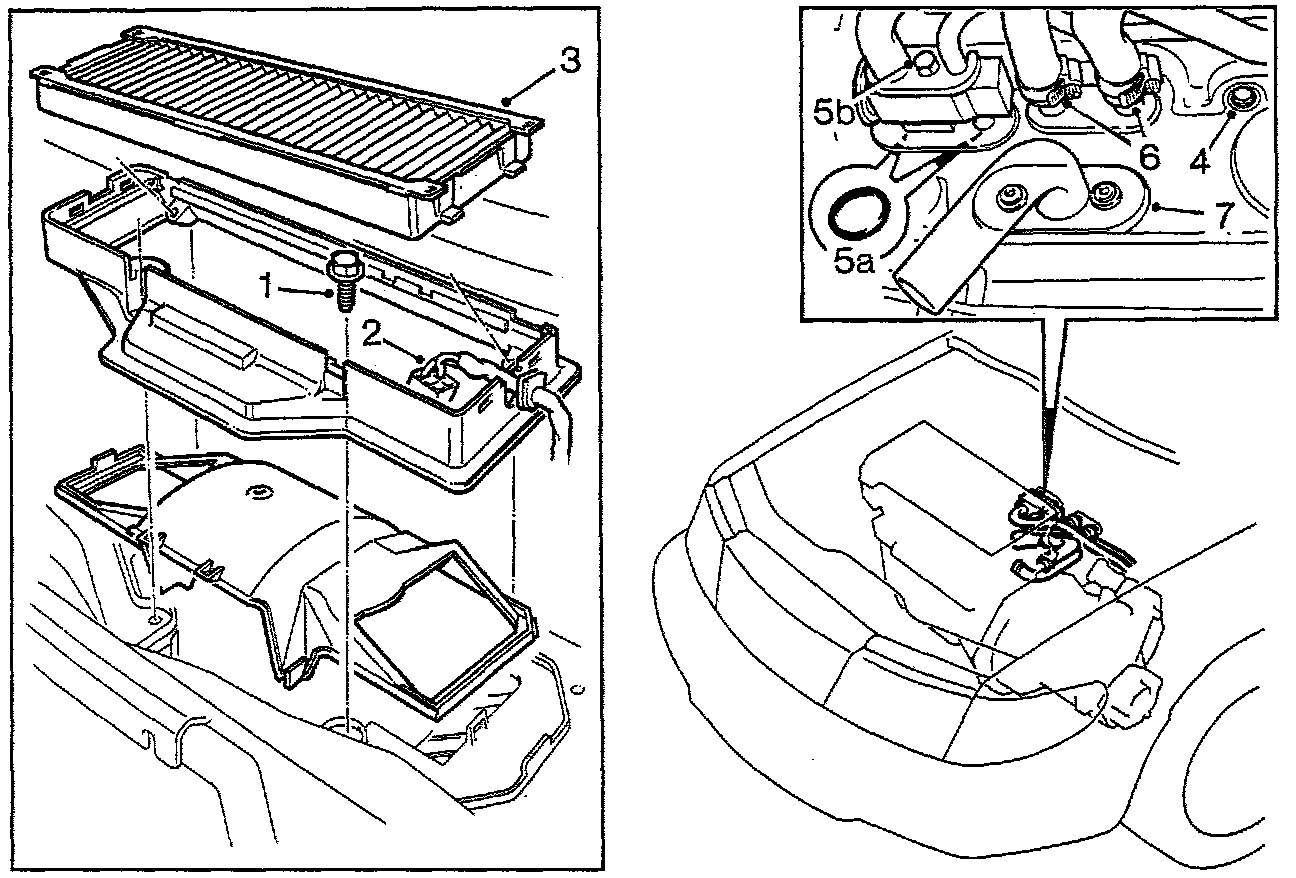

1. Position the climate control unit in place and tighten the four screws by the ventilation fan.
2. Plug in the ventilation fan's connector.
3. Refit the fresh-air filter.
4. Tighten the screw securing the climate control unit to the lower part of the bulkhead wall.
5. Cars with A/C:
- Lubricate all new 0-rings with synthetic vaseline and install them on the A/C hoses.
- Remove the plugs install the A/C hoses and tighten the screw.
6. Refit the coolant hoses to the pipes on the heater box and tighten the hose clips.
7. Refit the draining hose and tighten the screws.

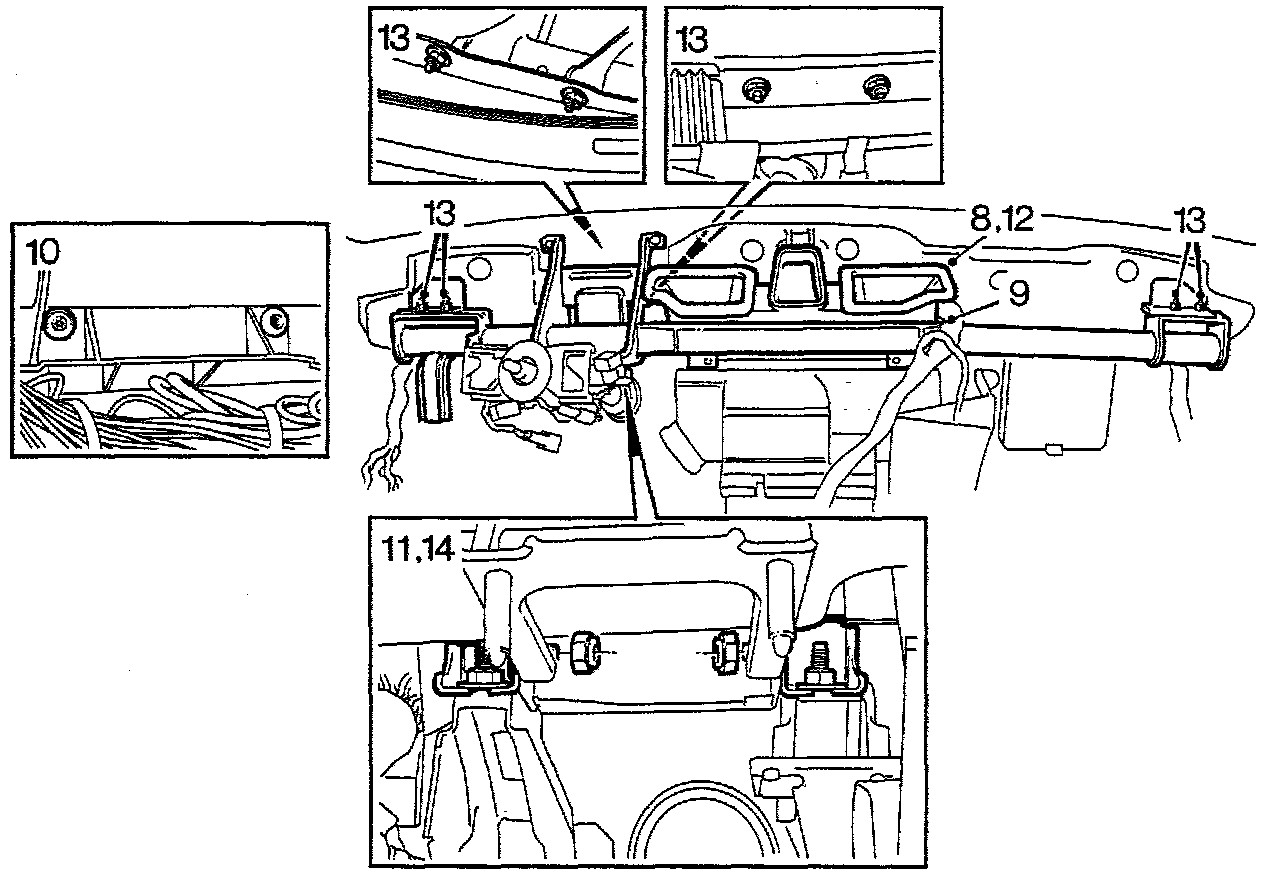

8. Remove the upper part of the climate control unit.
9. Position the wiring harness on the dashboard cross-member.
10. Refit the main fuse box on the dashboard crossmember and tighten the screws.
11. Refit the dashboard cross-member together with the angular supports.
12. Refit the upper part of the climate control unit.
13. Tighten the nuts and bolts securing the dashboard cross-member.
14. Tighten the nuts securing the angular supports.

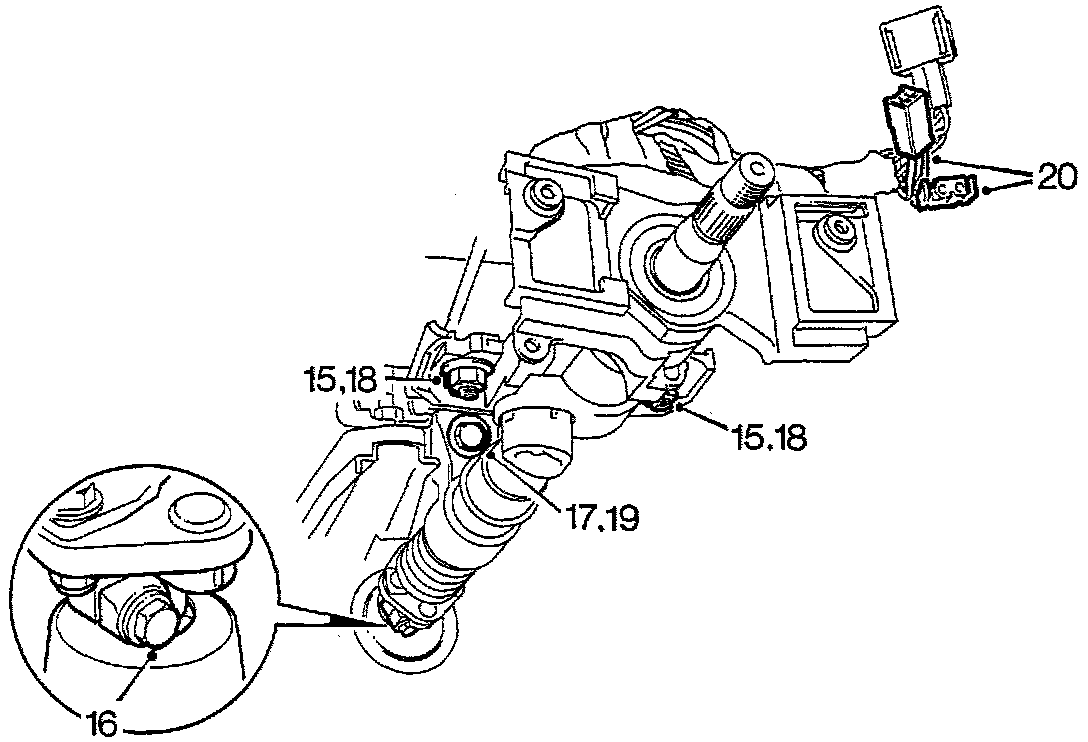

15. Refit the steering column and insert the nuts holding the steering column to the dashboard cross-member.
16. Tighten the screw securing the steering column to the steering gear.
17. Insert the bolt securing the support on the steering column to the dashboard cross-member.
18. Tighten the bolts securing the steering column to the dashboard cross-member.
19. Tighten the bolt securing the support on the steering column to the dashboard crossmember.
20. Plug in the steering wheel pad and horn connectors.

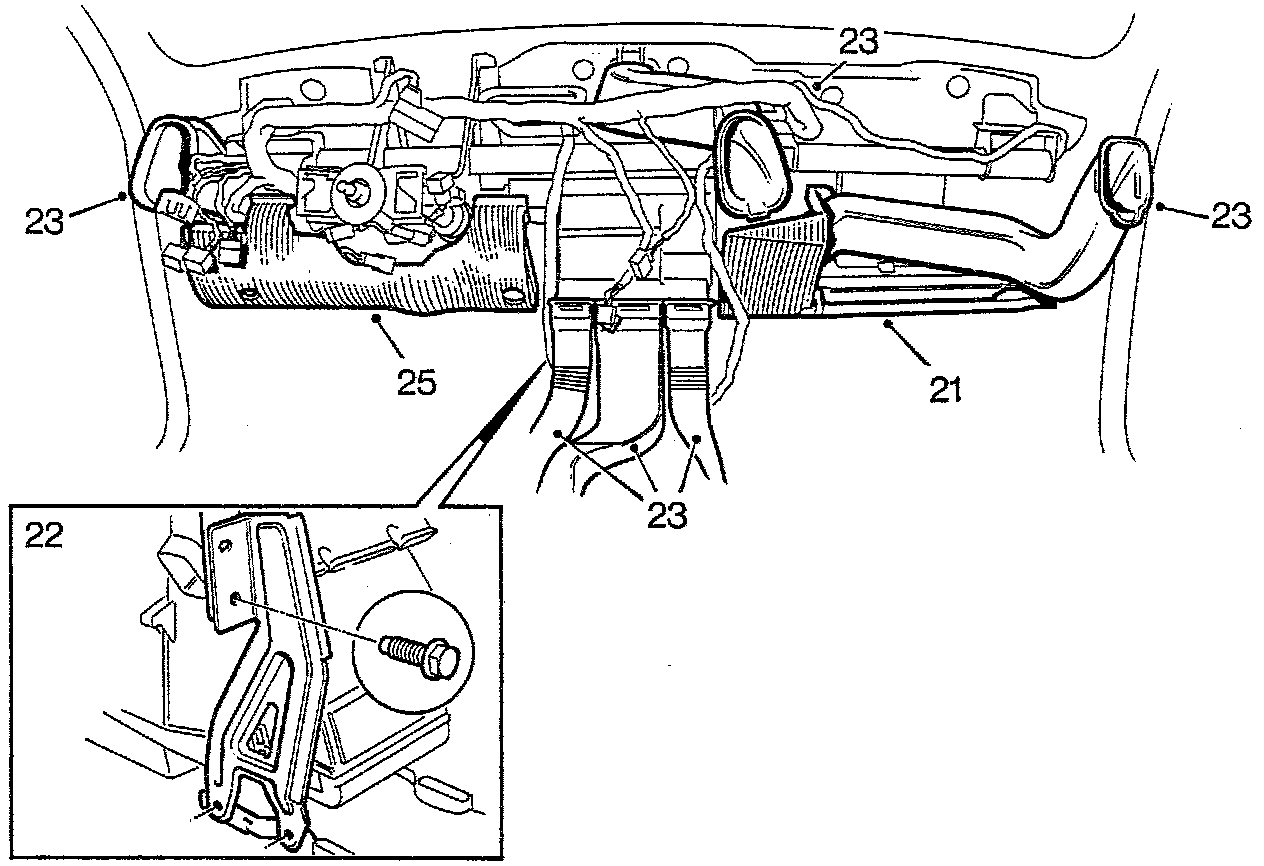

21. Cars with an airbag on the passenger's side: Refit the knee guard on the passenger's side.
22. Refit the support on the climate control unit on the driver's side.
23. Refit the air ducts.
24. Secure the cables with cable ties to the rear air ducts on the floor.
25. Refit the knee guard on the driver's side.
26. Refit the wiper unit.
27. Refit the cover over the bulkhead.
28. Refit the wiper arms.
29. Refit the dashboard.
30. Fill up with coolant.
31. Cars with A/C, fill up with refrigerant.
