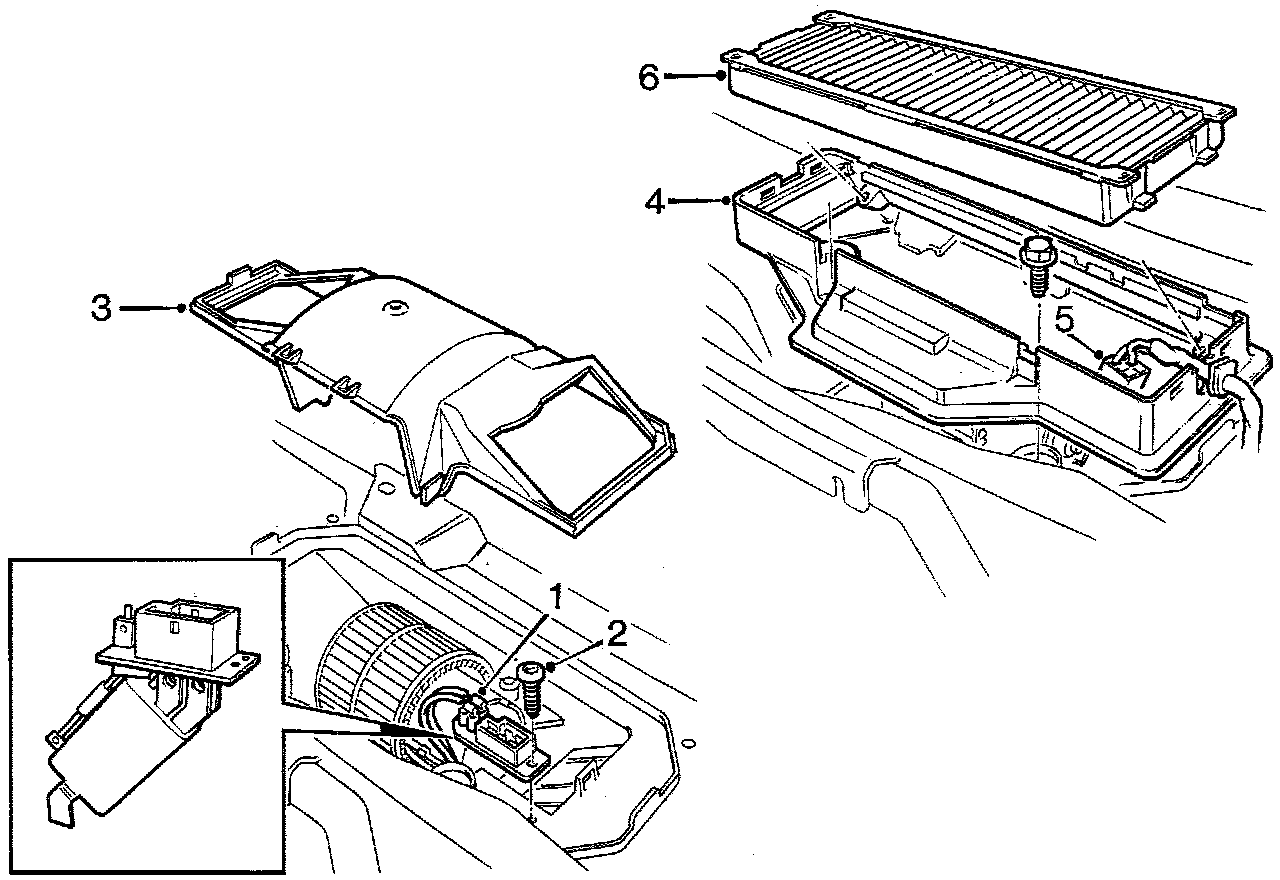

Fan Resistor Installation

1. Plug in the fan resistor connector.
2. Position the fan resistor and tighten the screw.
3. Refit the cover over the ventilation fan.
4. Refit the fresh-air filter frame.
5. Plug in the ventilation fan connector.
6. Refit the fresh-air filter,
7. Refit the wiper unit.
8. Refit the cover over the bulkhead.
9. Refit the wiper arms.
