Front

REMOVAL

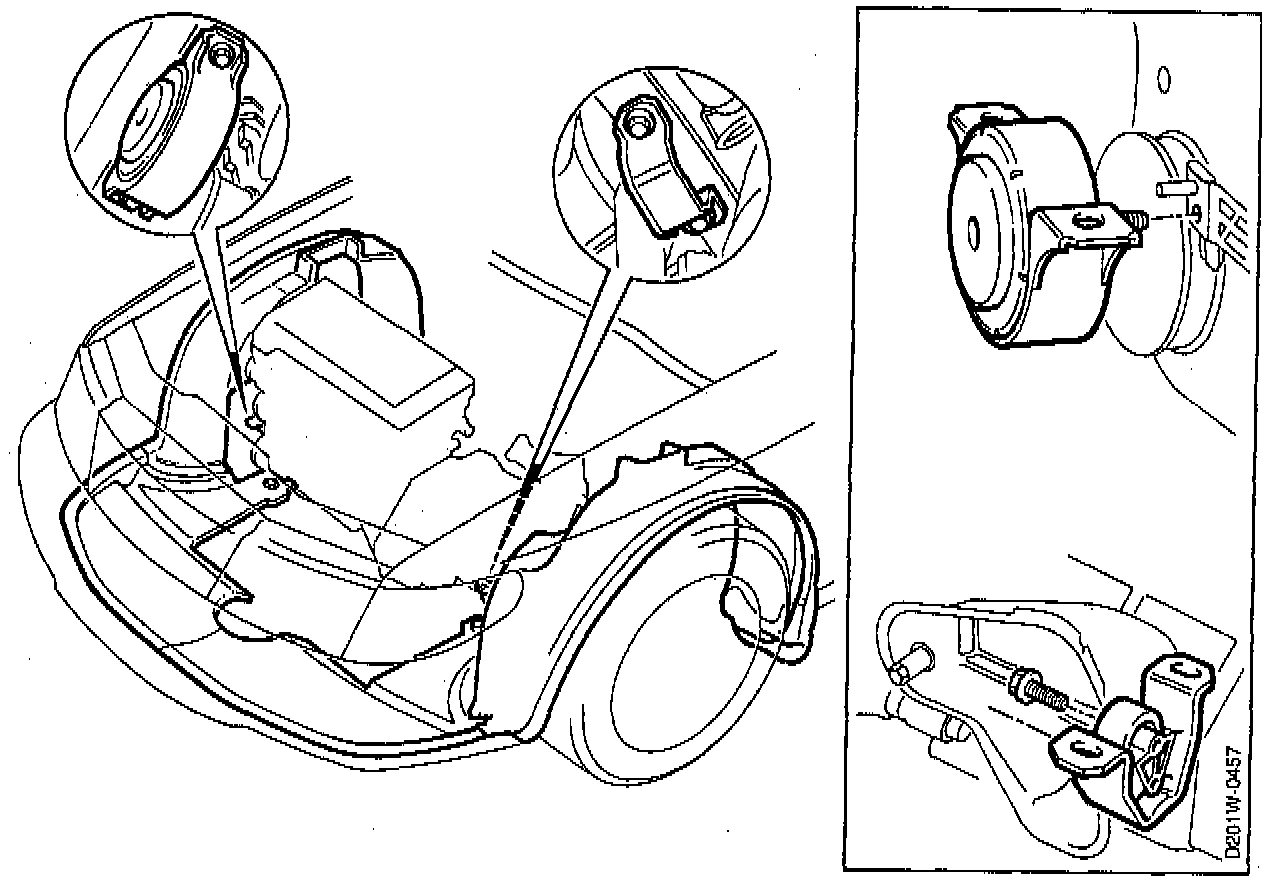

1. Raise the car and remove the front wheel on the side where the engine mounting is to be replaced.
2. Remove the fender liner and spoiler section and place a jack under the engine or gearbox.
3. Undo the bolts securing the engine mounting to the body.
4. Lower the engine slightly and unbolt the engine mounting from the bracket.

INSTALLATION
1. Bolt the engine mounting to the bracket, then tighten to: 39 Nm (29 ft. lbs.).
2. Raise the engine and tighten the engine mounting to the body to: 73 Nm (54 ft. lbs.).
- Remove the jack.
3. Install the spoiler section and fender liner.
4. Install the wheel and tighten the bolts to: 120 Nm (89 ft. lbs.).
5. Lower the car to the floor.
