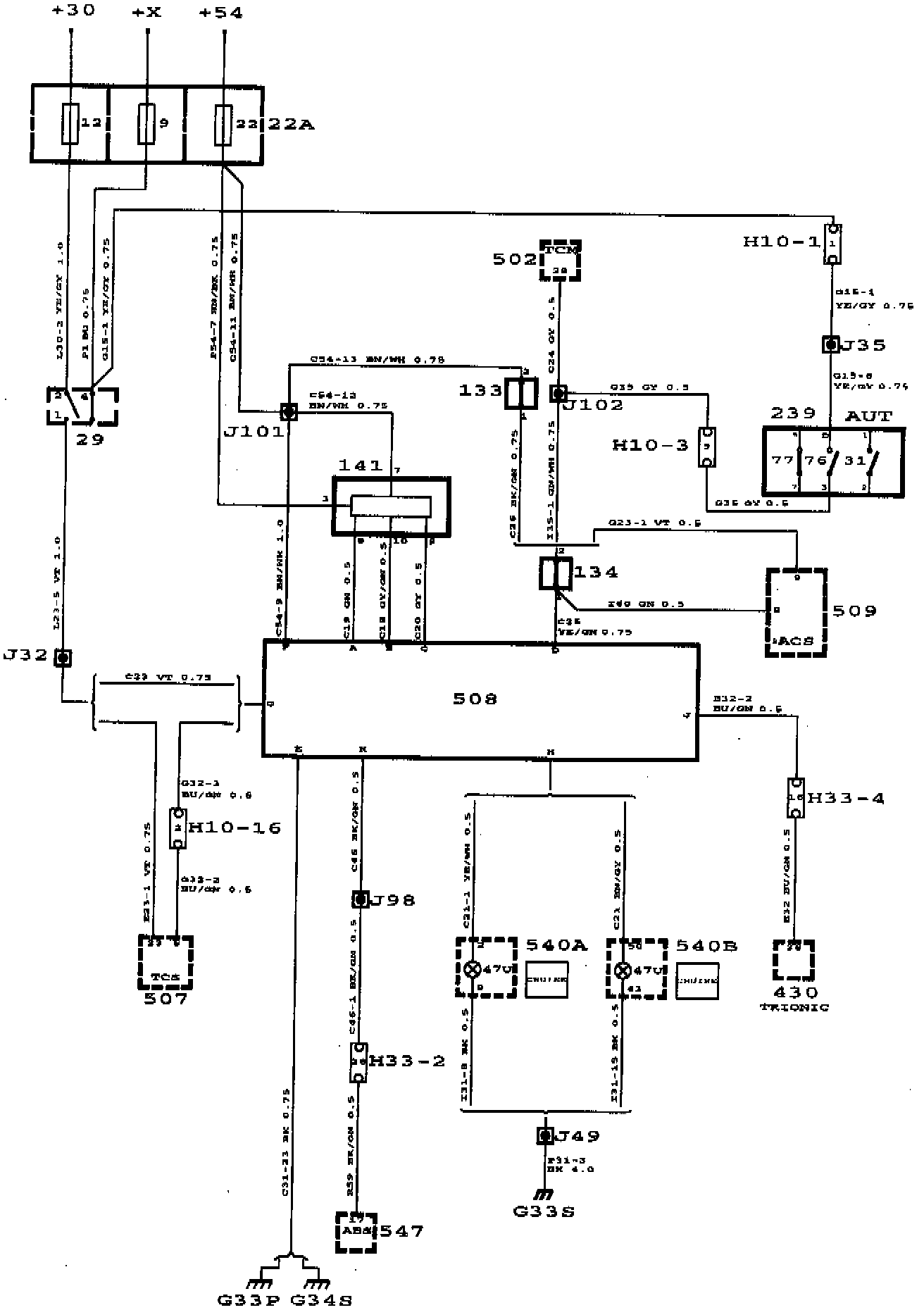

Wiring Diagram View

Wiring Diagram:

Wiring Diagram


22A Fuse holder in the dashboard
29 Brake lights switch on the pedal assembly
30 Brake light bulbs, right-hand and left- hand rear light clusters
47U CRUISE indicator lamp in main instrument display
76 Switch, idling speed increase, in selector lever position sensor 239 on the transmission.
133 Clutch switch, Cruise Control, on the clutch pedal
134 Brake pedal switch, on the brake pedal
141 Cruise Control switch, on the lights switch, on the left-hand side of the steering column
239 Selector lever position sensor, on the transmission
430 Trionic control module, in the cabin, below the right-hand A pillar
500 ICE control module, on top of relay holder 22B, under the dashboard adjacent to the steering wheel
502 TCM control module, on the bulkhead partition, behind the glove box
507 TCS control module, under the right-hand front seat
508 Cruise Control system control module, on a bracket in the false bulkhead space, in the engine bay on the right-hand side
540 Main instrument display panel on the dashboard
540A Main instrument display 1, without rev counter (tachometer), on the dashboard
540B Main instrument display 2, with rev counter (tachometer), on the dashboard
547 ABS control module, on the brake unit in the engine bay
10-pin connectors
H10-1 On a bracket behind the battery in the engine bay
H10-3 On a bracket behind the battery in the engine bay
33-pin connectors
H33-1 Blue 33-pin connector on a bracket below the left-hand A pillar
H33-2 Black 33-pin connector on a bracket below the left-hand A pillar
H33-4 On a bracket on the bulkhead partition behind the glove box
G3 Grounding point in the luggage compartment on the left-hand side
G33P Power ground on a bracket below the left-hand A pillar
G33S Signal ground on a bracket below the left-hand A pillar
