Front Seat Backrest - Difficult To Tip Forward: Overview
900SERVICE INFORMATION
SI No. 852-1878
PI No.
Date July 1998
Distr. All

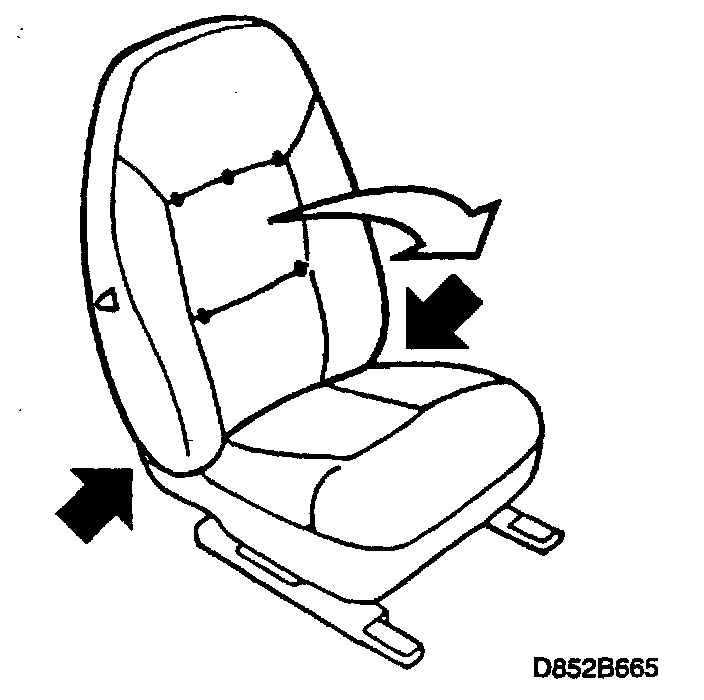

Front seat backrest difficult to tip forward
Cars affected
Saab 900 3D M94-M98.
Saab 900 CV M95-M98.
Background
The cables in the folding mechanism on cars with folding backrests may become slightly stretched over time. This condition applies especially to the longer cable. This can result in the backrest latches used when tipping the backrest to not open sufficiently, making it difficult to tip the backrest.
By fitting a cable spacer between the two cables, tension will be applied more evenly.
Follow the directions on the following pages to rectify a customer complaint.
Parts required
49 03 431 Cable spacer (CA: 30576055)
Warranty/Time Information
Failed Object: 85216
Fault/Reason code: 27
Location code: 3, 4 (Left/right)
Warranty Type (US): 01
Repair/Action code: 05
Labor Operation (US): 85211
Time: 0.4
(CA: C6010 L/side 0.4 hrs., C6011 P/side for 0.4
hrs.)
