Mirrors: Description and Operation

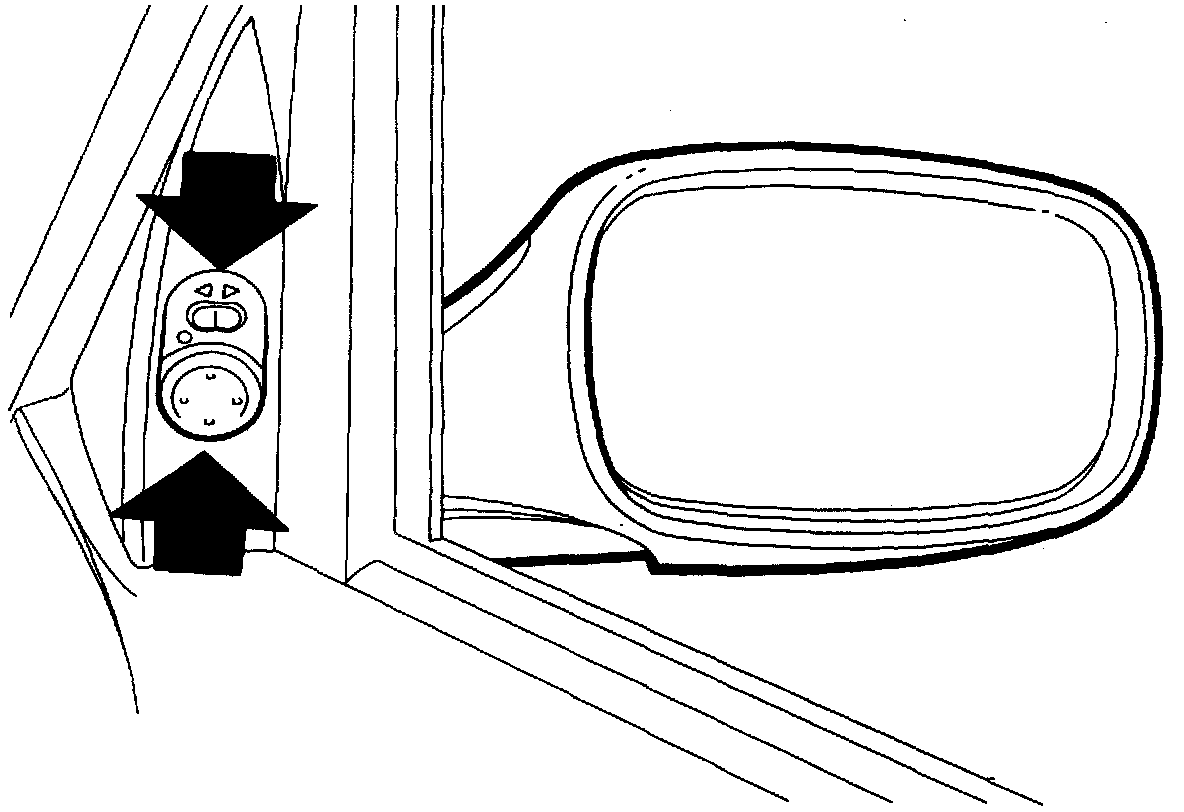

The electrically adjustable door mirrors are operated by means of a four-position switch and a selector switch by the drive's door mirror.

Cars for certain markets also have a switch for retracting the door mirrors.

The switch is mounted beside the other switches on the driver's side.
Door mirror heating elements is switched on by the same switch as for the heated rear window.
