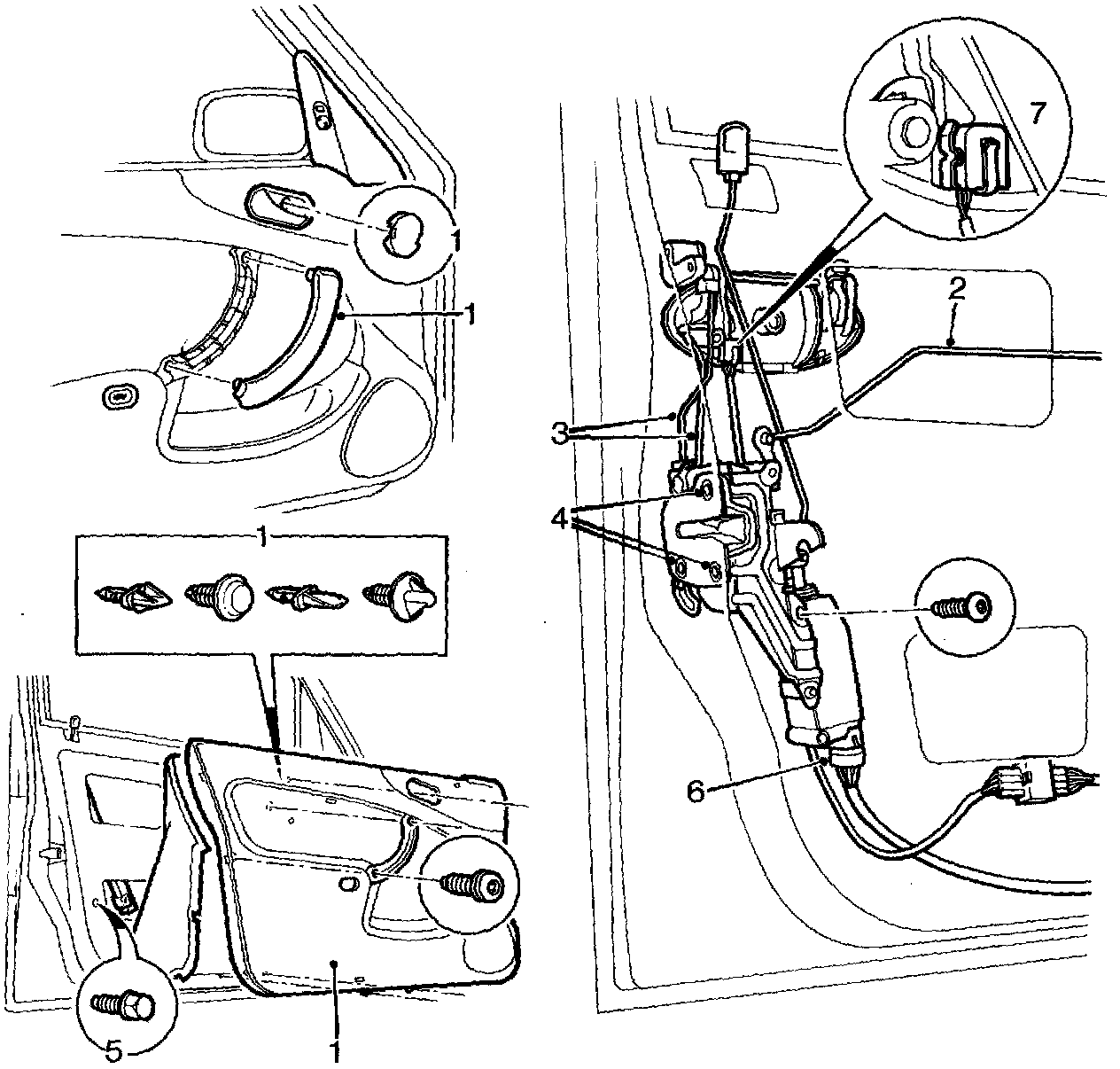

Replacement of Front Door Lock

1 Remove the door handle and door trim on the inside of the front door.
2 Detach the linkage from the lock.
3 Remove the clip from the lock.
4 Undo the screws for the lock assembly (in the side).
5 Remove the screw for the window channel and lift out the central locking motor with linkage for the locking button.
6 Unplug the connector.
7 Remove the link between the door handle and lock, and remove the clip securing the microswitch by the lock cylinder.
8 Lift the microswitch away from the door handle.

Install in reverse order.
