Self-Immobilizing






The anti-theft alarm's self-immobilizing function is always engaged when the ignition key is removed from the ignition switch. This takes place automatically after a certain time without the remote control having to be used.

The time before the function becomes active is preset but can be programmed. The LED flashes at a rate of twice per second to indicate that the function is active.

Programming
Self-immobilizing, time
Connect an Intelligent Saab Tester (ISAT) scan tool.
Select "PROGRAMMING".
Select "SELF-IMMOBILIZING".

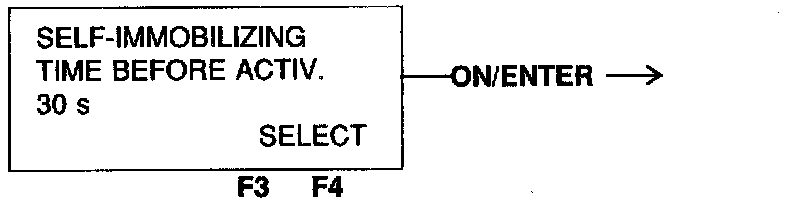

Select "TIME BEFORE ACTIVE.": 30, 60, 90, 120, 150, 180, 210, 240, 270 or 300 seconds as the time elapsing before the car is self-immobilized.


Important: If the ignition key is not inserted in the ignition switch after the car has been disarmed/unlocked, the car will be automatically self-immobilized after 3 minutes.
