Self-Immobilization (3-Circuit Breaking)

The anti-theft alarm can be programmed for self-immobilizing alone, that is to say only the alarm's 3-circuit breaking function is activated. This takes place automatically without the use of the remote control.

This function is only used when self-arming has been disabled. When self-arming is selected, the function is automatically included. Only two choices are possible and if the "ON" function is selected it will be connected in accordance with the latest self-arming alternative selected. If no self-arming alternative is selected, the function will be connected when the ignition is off and the door closed.

When the function is active, this is indicated by the LED flashing at the rate of 1 flash per second. This occurs after "TIME BEFORE ACTIVE.".

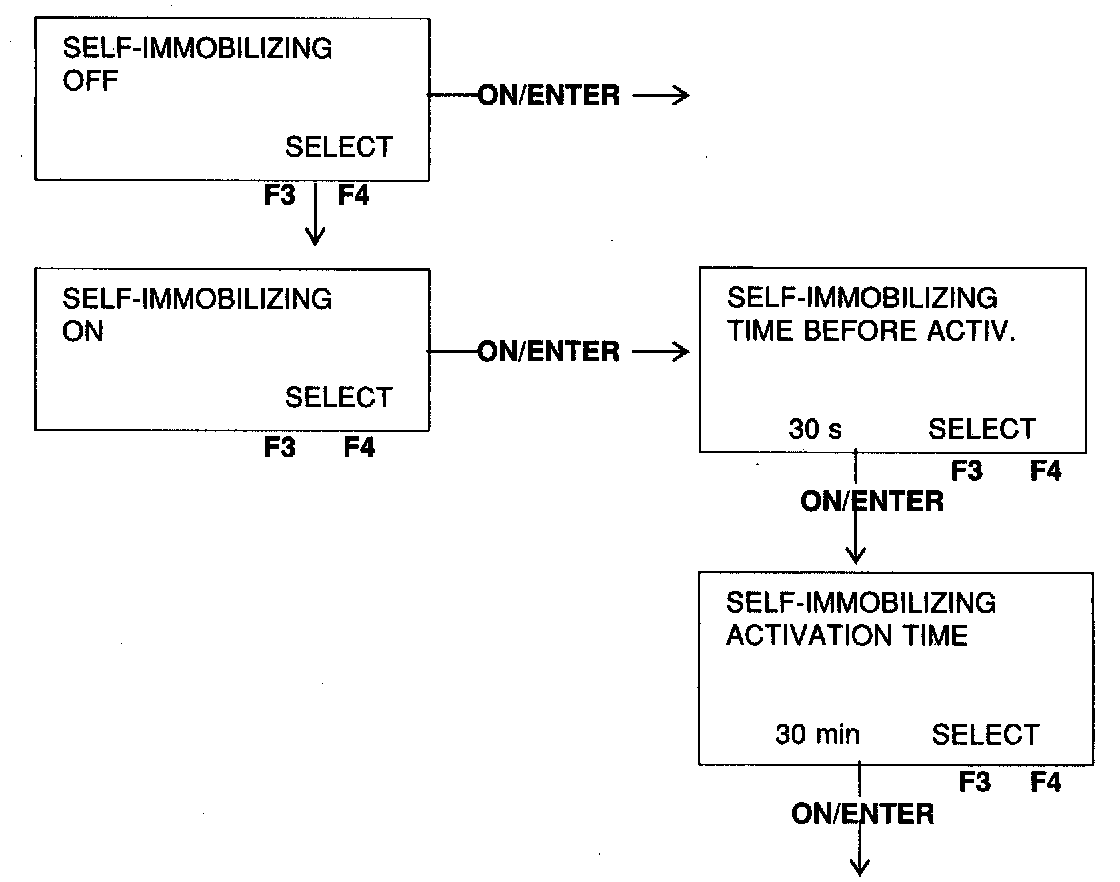

Programming
Self-immobilizing
Connect an Intelligent Saab Tester (ISAT) scan tool.
Select "PROGRAMMING".
Select "SELF-IMMOBILIZING" and then:
1 "ON" to select self-immobilizing.
2 "OFF" to deselect self-immobilizing.

Time until self-immobilizing
1 Select "TIME BEFORE ACTIVE." if "ON" was selected above.
2 Select the time: 30, 60,120,180,300 or 600 seconds until self-immobilizing is armed.

Immobilizing time
Select "ACTIVATION TIME": 30, 45 or 60 minutes.
