Self-Arming

The anti-theft alarm can be programmed for self-arming. This means that the alarm automatically starts monitoring without the remote control being used. There are two types of self-arming and for both of them the time before the function becomes active should be specified. The activation time should also be selected. The activation time is the time the 3-circuit breaking function is active when the alarm has been triggered.

When the alarm has been triggered, the selected country code will apply. The LED will start its delay period according to the specified "TIME BEFORE ACTIVE." and then go over to indicating that the alarm is armed.

Programming
Self-arming
Connect the scan tool.
Select "PROGRAMMING".

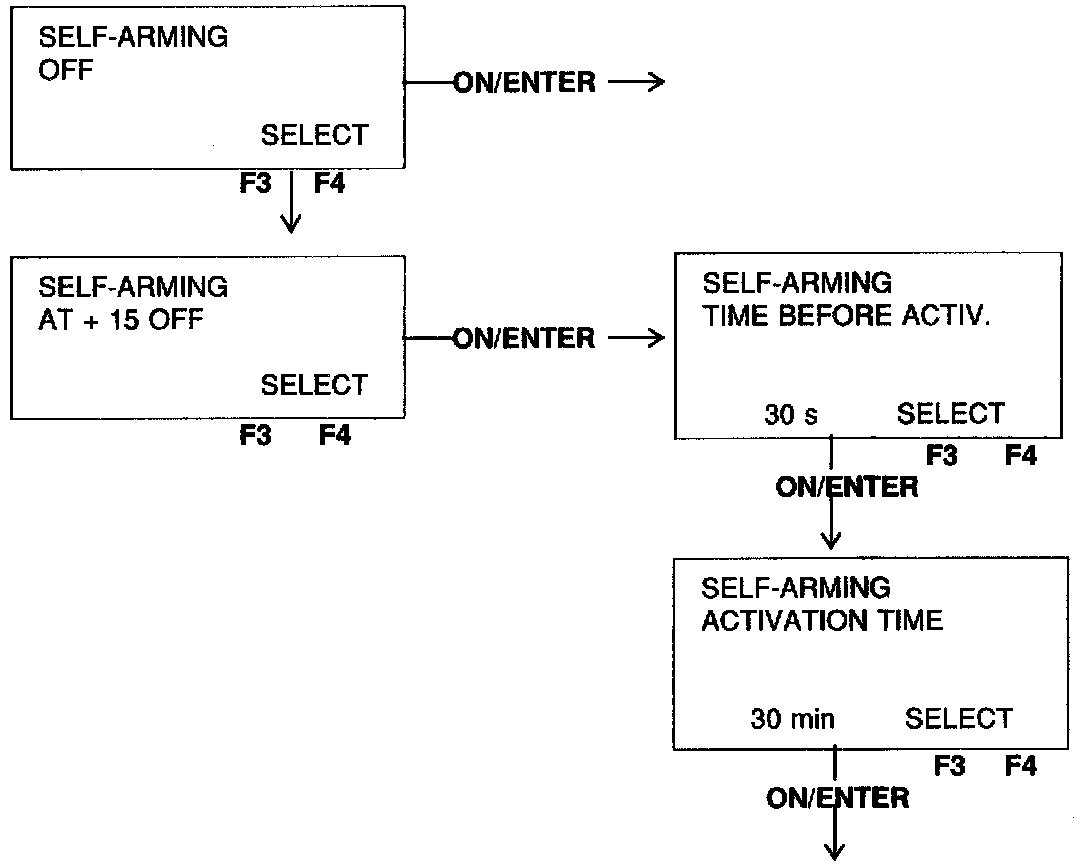

Select "SELF-ARMING" and then:
1 "OFF" in order to deselect self-arming.
2 "AT +15 OFF" for connection of the self-arming function when the ignition is "OFF".
3 "+15 OFF DOOR CLOSED" for connection of the self-arming function when the ignition is "OFF" and the driver's door closed.

Time before self-arming
1 Select "TIME BEFORE ACTIVE.".
2 Select the time: 30, 60,120,180,300 or 600 seconds until the alarm should self-arm.

Arming time
Select "ACTIVATION TIME": 30, 45 or 60 minutes.


Important: When self-arming has been selected, "Self-immobilizing" or 3-circuit breaking will also be automatically included in the arming function.
