Antitheft Alarm - Replacement
SI No. 383-1856PI No.
Date January 1998
Distr. all
900
Directions for replacing the anti-theft alarm without VSS (ATA)
Cars affected
Saab 900 M95- with anti-theft alarm without VSS.
Background
This SI attends to the questions and complications that may arise when replacing and programming remote controls and electronic control modules for anti-theft alarms without VSS.
Page numbers quoted in the text refer to Service Manual 3:5 "Anti-theft alarm, Anti-theft alarm with VSS".
Procedure
Make sure the anti-theft alarm fitted is without VSS.

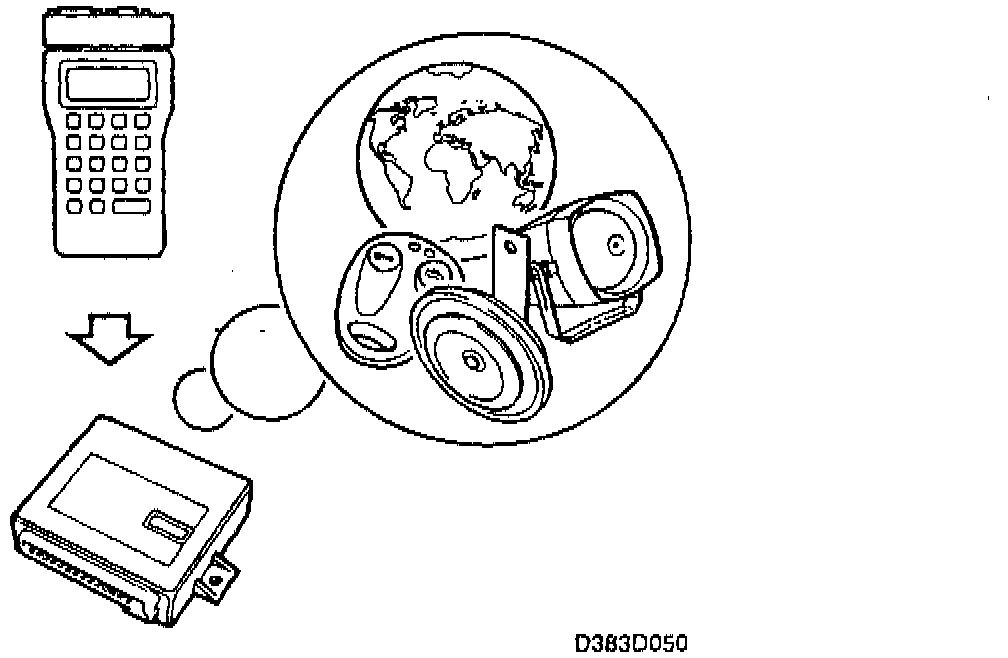

When Tech 2 is connected for alarm diagnostics. a text is displayed showing the type of alarm fitted on the car.
Diagnosis
Make a practice of always having the ignition ON when diagnosing with Tech 2.
The procedure is divided into two sections:
A Electronic control modules
B Remote control units
A. Electronic control modules Electronic control module replacement under warranty
An electronic control module that is being replaced under warranty must be disarmed and the remote controls de-programmed with the command "DEPROGRAM ALL" as described on page 184 in the service manual.
Important
If the alarm ECM cannot be de-programmed, the remote control must be submitted on the same claim. Note in the claim text the remote was replaced due to the alarm ECM failing to de-program.
Parts must be sent TOGETHER on the same claim to Warranty Parts Testing when requested. Failure to follow these procedures will result in the alarm ECM being returned to you dealership and a charge back of the entire claim amount.
B. Remote control units
Checking the functionality of the remote control unit
Connect Tech 2 to a car with a functioning alarm. The remote control does not need to be programmed for the car it is being tested on. Select the "READ VALUES" - "REMOTE CONTROL" menu. When the appropriate button on the remote control unit is pressed, this will be indicated on the diagnostic tool's display.
Replacing a remote control
If all remote control units are missing or unserviceable, the following steps should be taken when:
^ Alarm disarmed
When the remote control can be programmed.
When programming the remote controls, the command "DEPROGRAM ALL" (see page 175) must first be carried out before programming the "REMOTE CONTROL" (See page 175).
^ Alarm armed
The electronic control module must be replaced. There is no possibility of using Tech 2 or any other method to disarm the electronic control module.
Warranty/Time information
Failed Object: A = 38351, B = 38350
Fault/Reason code: 61
Location code: 09 (US = 0)
Warranty type (US): 01
Repair/Action code: 01
Labour operation (US): Use applicable labor operations for repair.
