Glass Breakage Sensor

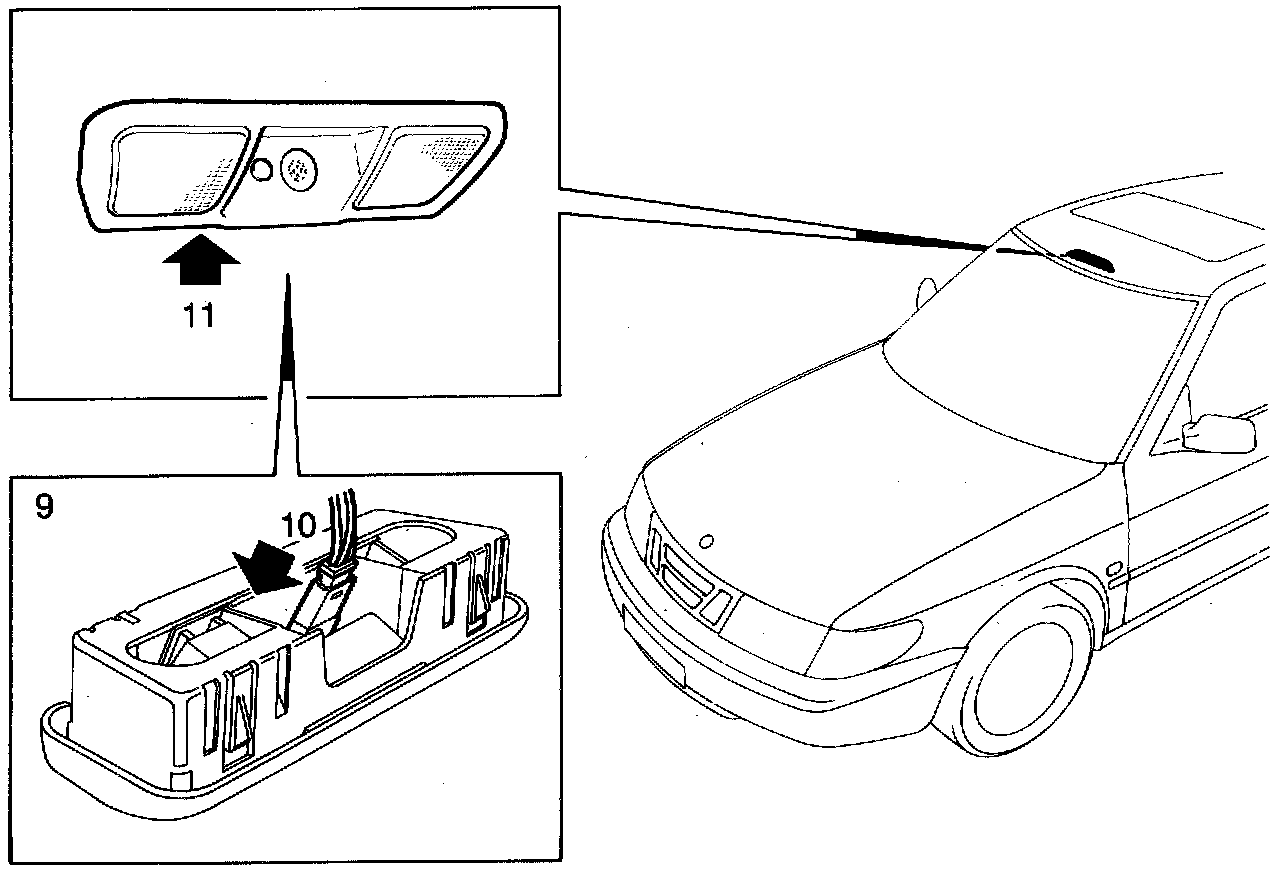

9 Remove the existing interior lighting in the root and unplug the connector. Tape down the old cable.
10 Plug in the other connector (in the space) to the new interior lighting.
11 Press this into position.

Cabriolet
Glass breakage sensor is not included in the following markets: ME, LA, AU
