900 SE Convertible L4-1985cc 2.0L DOHC Turbo EFI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Service and Repair
>>

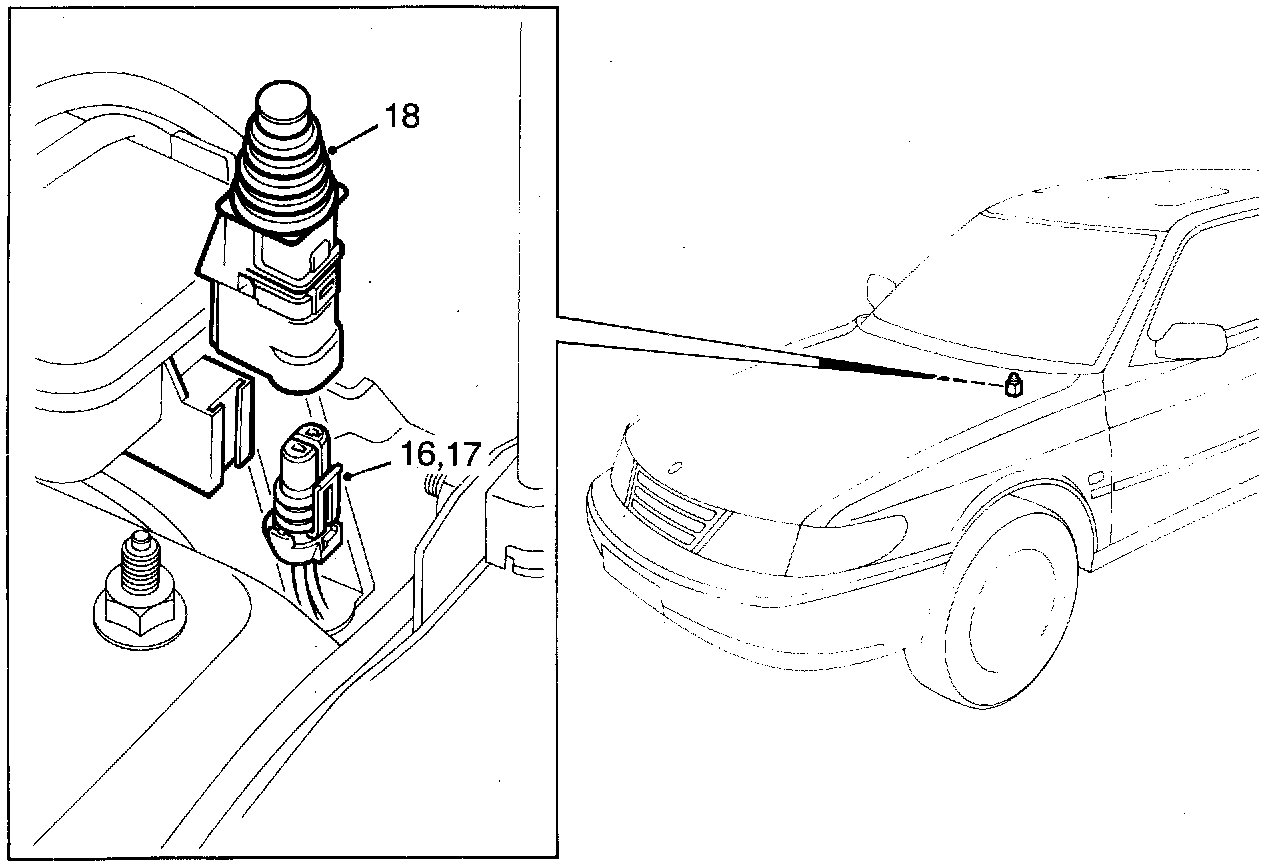

Engine Hood Switch
Engine Hood Switch
16
Open the hood and lift up the electrical distribution box in order to find the cable assembly for the
hood switch
.
17
Connect the
hood switch
.
18
Install the
hood switch
on the electrical distribution box.
