Control Module

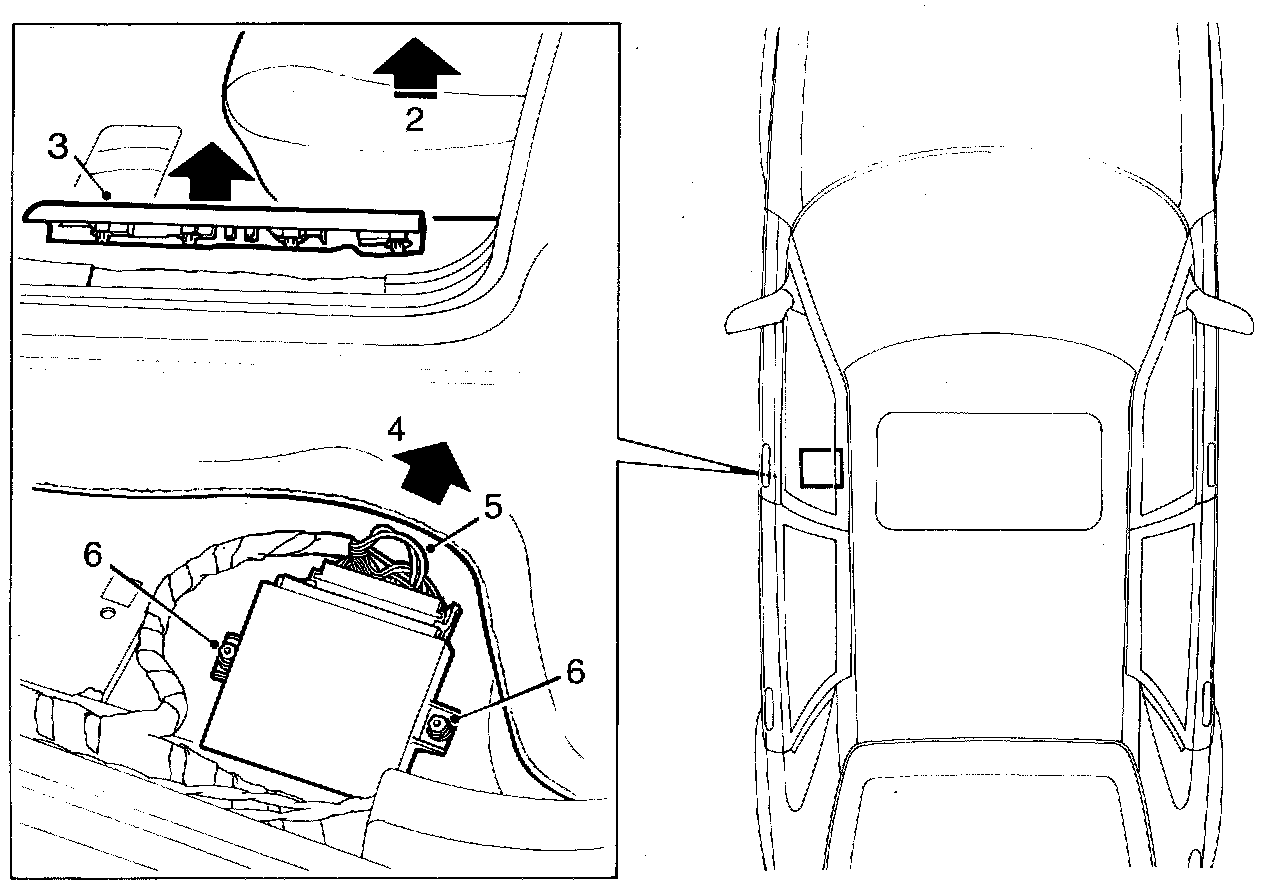

1 Before starting work, the negative lead must first be disconnected from the battery.
2 Lift the left-hand front seat to its uppermost position.
3 Remove the scuff plate.
4 Lift up the carpet just in front of the B pillar in order to gain access to the theft alarm connector.
3-D: Remove the seat-belt bolt located on the floor.
5 Plug in the control module to the 25 pin connector.
6 Secure the control module with the two plastic nuts.
Proceed to point 9 in Glass Breakage Sensor.
