Security Lamp/Indicator: Service and Repair

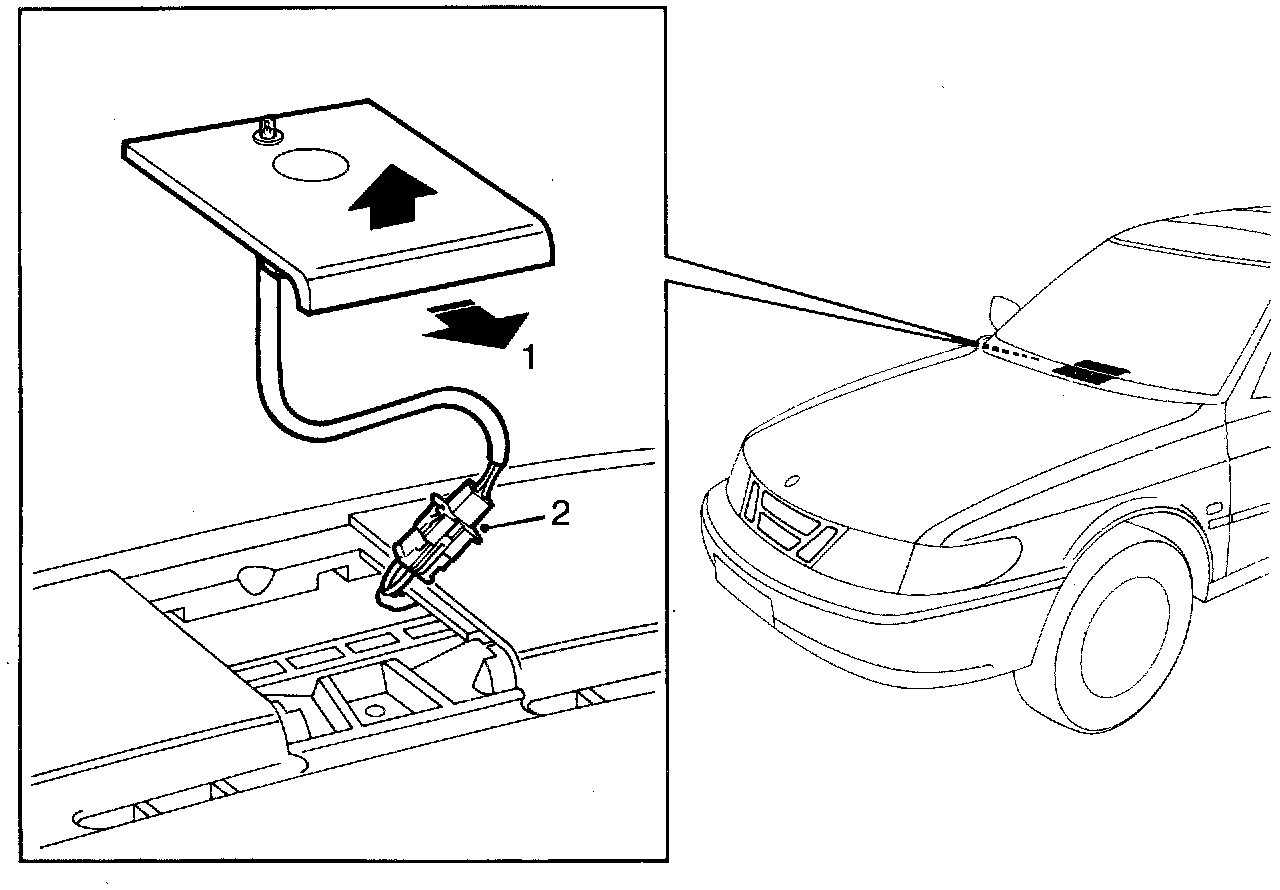

1 Press the tray with the LED backwards and upwards.
2 Unplug the connector to the LED.
3 Remove the LED.
4 Install in reverse order.
