w/o VSS

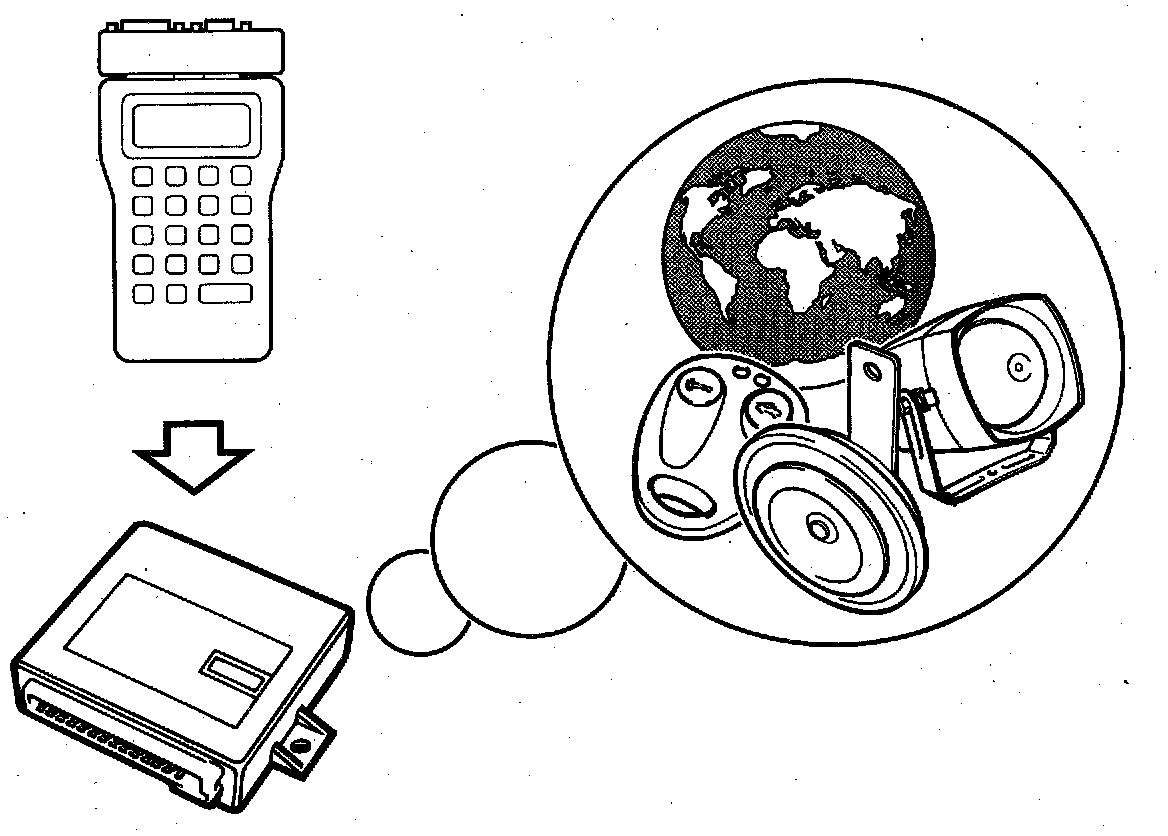

Programming options
- Country-adapted alarm signal/personalized option for alarm signal.
- Coding the remote control (max 4).
- Self-arming. (+15 off, +15 off door closed, off and time)
- Self-immobilizing. (On/off and time)
- Flash/buzz confirmation for remote control (Original value/adjustment)
- Flash/buzz confirmation, adjusting (Time)
- Programming for siren. (On/off)
- Tailgate opening with ignition "ON" (+15). (On/off)
- Sound adjustment (Sound characteristics)

For more detailed information on programming scope, see "Adjusting".
