Manual Control With Car Key, Anti-Theft Alarm US/CA

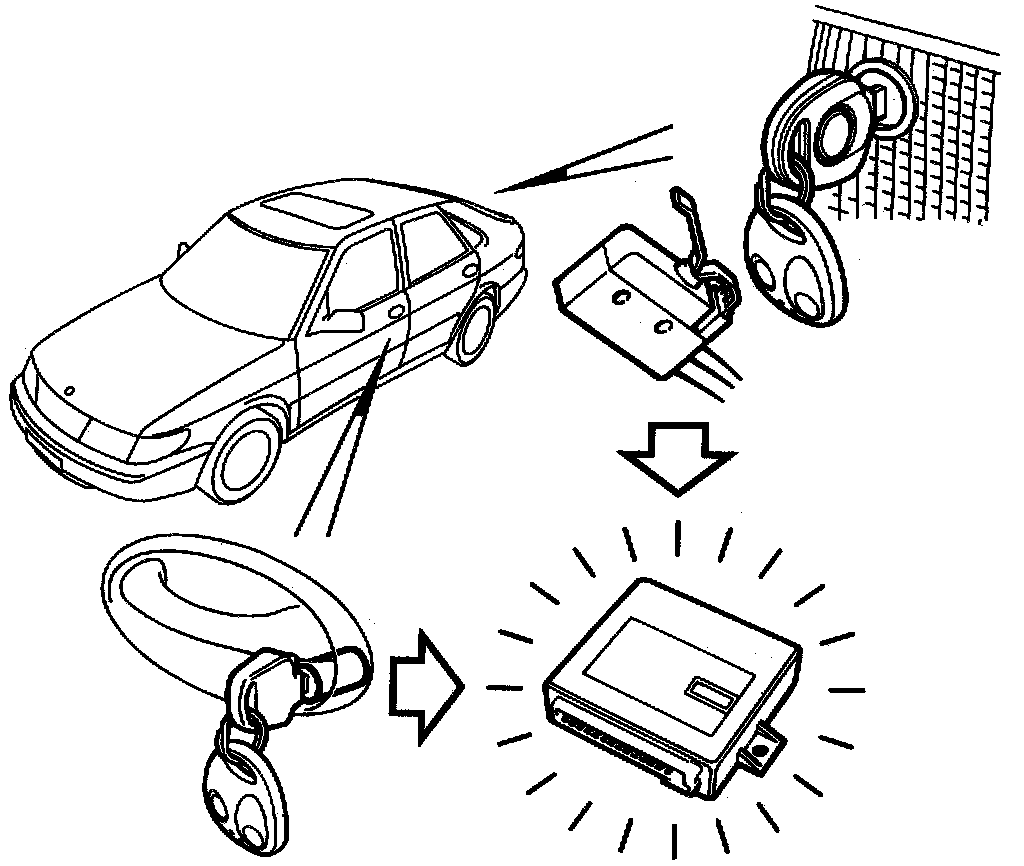

With the car key in the door lock
The anti-theft alarm can be armed and disarmed manually by inserting the car key in the door lock.

Arming the theft alarm
1 When arming using the car key, this is inserted into the lock in the door and turned 45 degrees to the locked position.
2 A microswitch beside the door's lock cylinder sends a locking signal to the central locking system control module and a signal to the alarm control module (pin 17) to arm the alarm. The car doors are locked.

Disarming the theft alarm
1 When disarming using the car key, this is inserted into the door lock and turned 45 degrees to the unlocked position.
2 The microswitch by the door lock cylinder sends an unlock signal to the central locking system control module and a signal to the alarm control module (pin 6) to disarm the alarm. The car doors are unlocked.

Disarming the tailgate
1 The tailgate alone can be disarmed and unlocked by means of the car key without affecting the rest of the alarm system. The flash/ buzz acknowledgement of this function is programmable.
2 The microswitch in the luggage compartment lock supplies voltage to the luggage compartment lock motor so that this unlocks the tailgate, and sends a signal to the alarm control module (pin 15) to disarm the alarm.
