Actuation of Alarm

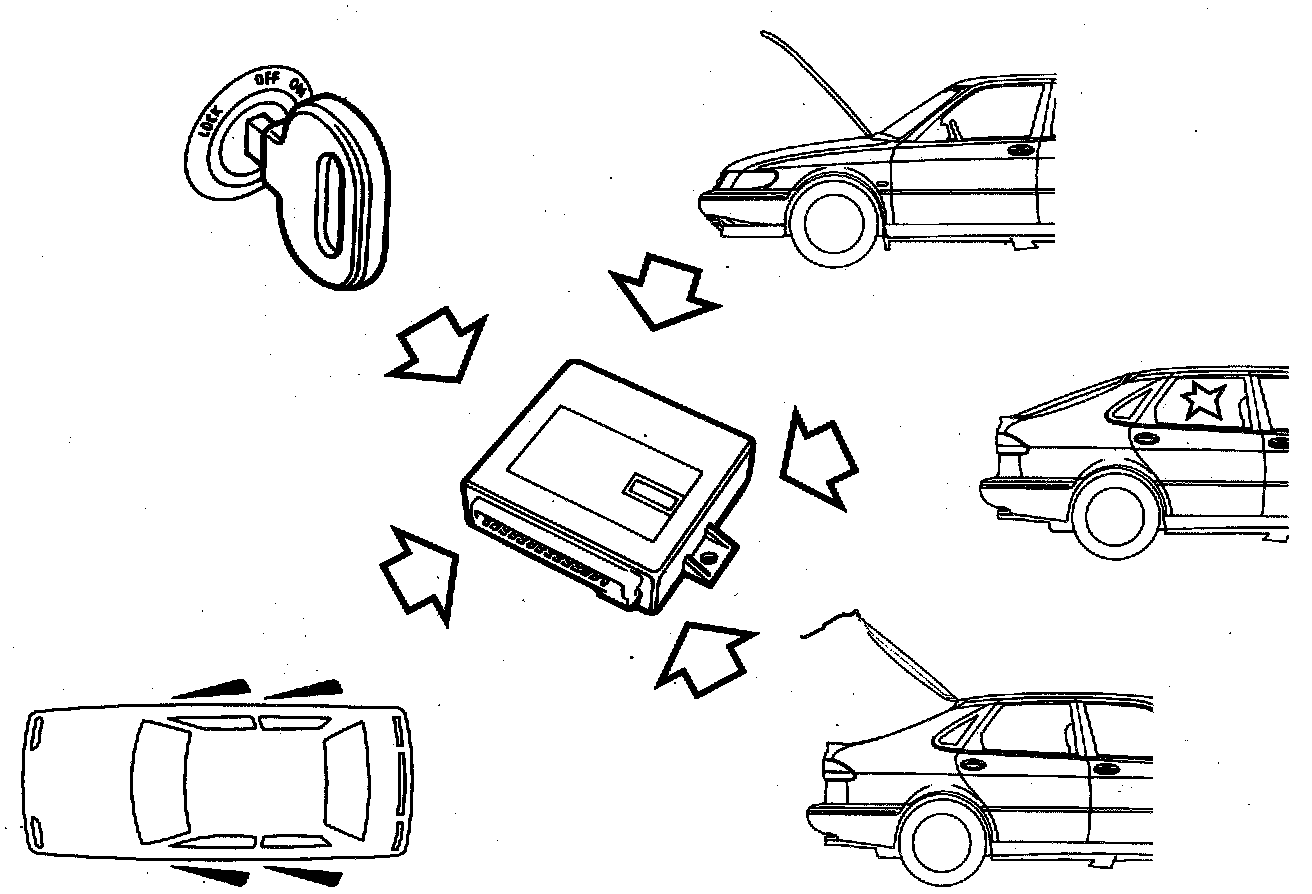

When the alarm is armed, it is set off if alarm data is received by the control module on the following connections:
- The door switch is grounded (pin 4).
- The bonnet switch is grounded (pin 16)
- The luggage compartment switch is grounded (pin 3).
- Signal from the glass breakage sensor (pin 7)
- Signal from the sensor disconnecting button (pin 7)
- Connecting or bypassing the ignition, "ON" position (+15) on the ignition switch (pin 10).

When the alarm Is set off, the horn sounds for 30 seconds and the direction Indicators flash for 5 minutes.

Anti-theft alarm
The +15 power supply circuit for the starter motor and fuel pump relays Is blocked for 30 minutes. Each fresh attempt to start extends the blocking time by 30 minutes. If the Ignition Is switched on, these relays will continue to remain blocked as long as the alarm Is armed.

Anti-theft alarm with VSS
The engine management system prevents the engine from being started.

To switch off an alarm that has been set off, It is disarmed In the normal way using the remote control.


Important: This type of alarm tripping is standard (at delivery). Flash and sound times can be reprogrammed as required by the local market.
