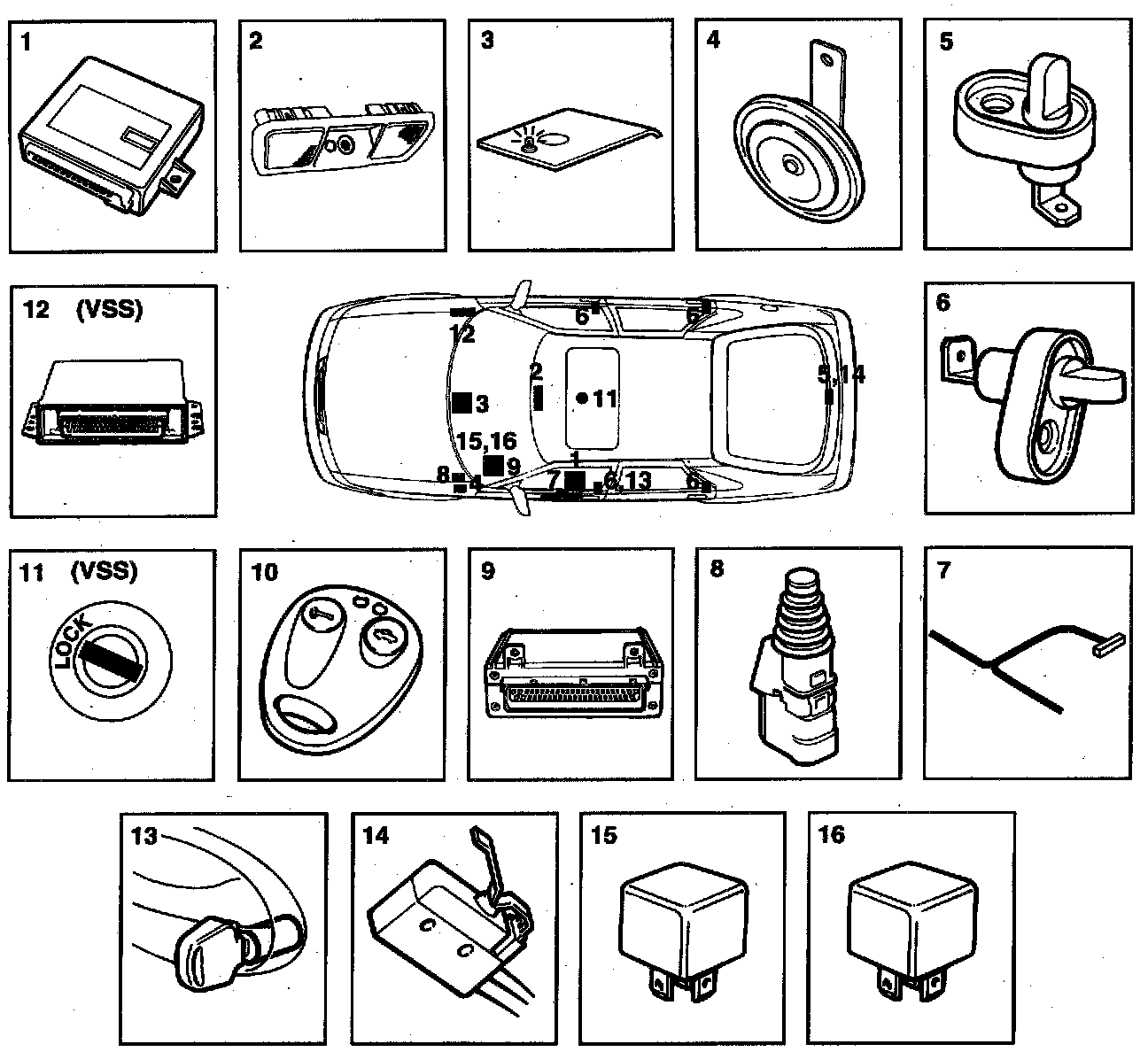

Main Components of Theft Alarm 900

The anti-theft alarm systems incorporate the following main components:
1 Electronic control module
2 Glass breakage sensor (integrated in the interior lighting lamp)
3 LED
4 Horn
5 Luggage compartment switch
6 Door switches
7 Aerial for remote control
8 Bonnet switch
9 ICE electronic control module
10 Remote control
11 Ignition switch (Anti-theft alarm with VSS)
12 Engine management system
13 Microswitch, door (US/CA)
14 Microswitch, tailgate
15 Starter relay (Anti-theft alarm)
16 Fuel pump relay (Anti-theft alarm)
