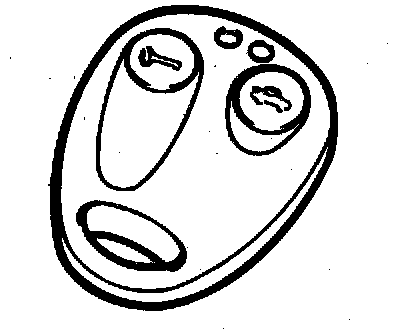

Home >> Saab >> 1998 >> 900 SE Convertible L4-1985cc 2.0L DOHC Turbo EFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm System Transmitter >> Description and Operation >> Technical Description

Technical Description






Type: Frequency modulated RF (Radio Frequency) signal
Frequency (carrier wave):
EU 433.92 MHz
US/CA 315 MHz GJA 315 MHz (short range)
Operating voltage: Battery 2 Lithium/CR2016 (3 V)
