Alarm Horn: Service and Repair






First detach the negative lead (-) from the car battery.

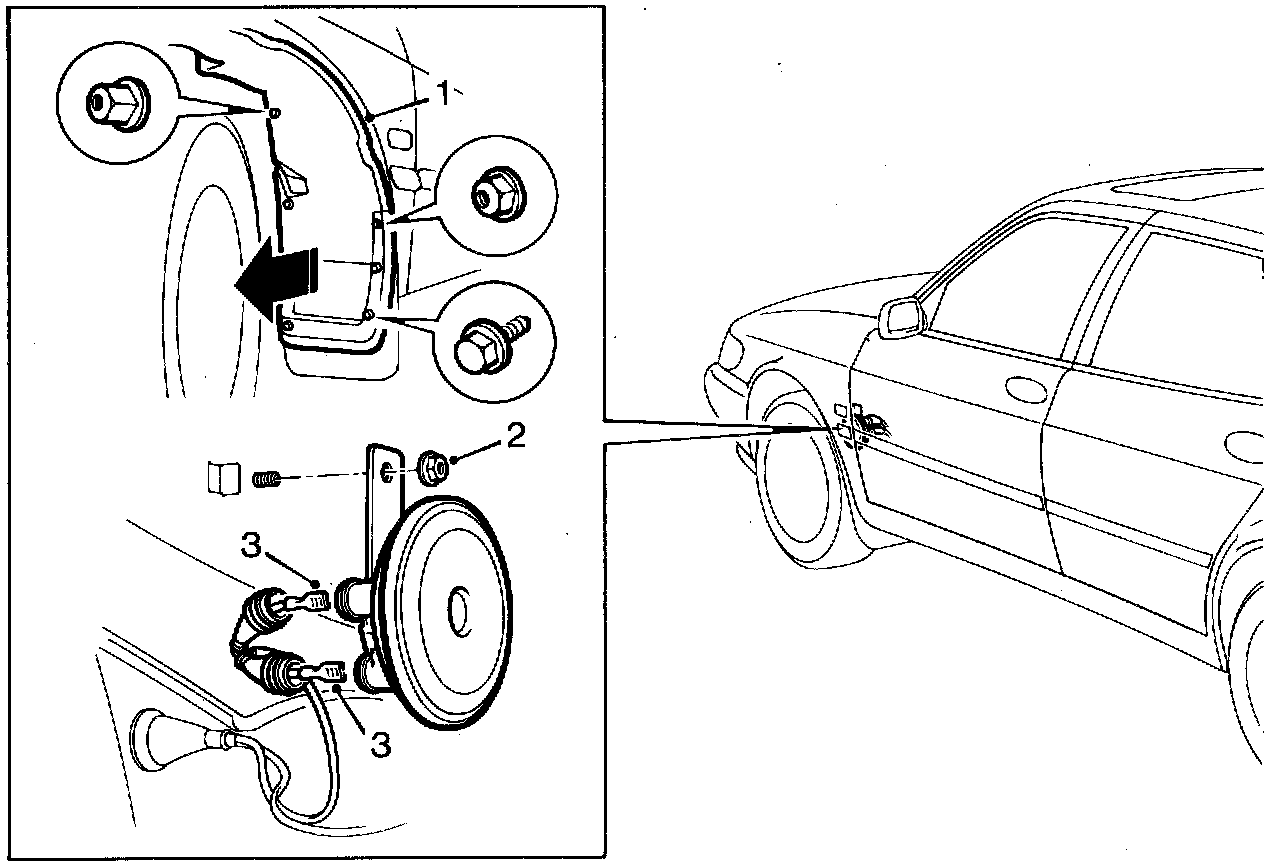

1 Remove the rear part of the wing liner in the front left-hand wheel housing.
2 Remove the nut securing the horn and lift out the horn.
3 Unplug both the 1 pin connectors.
4 Install in reverse order.
